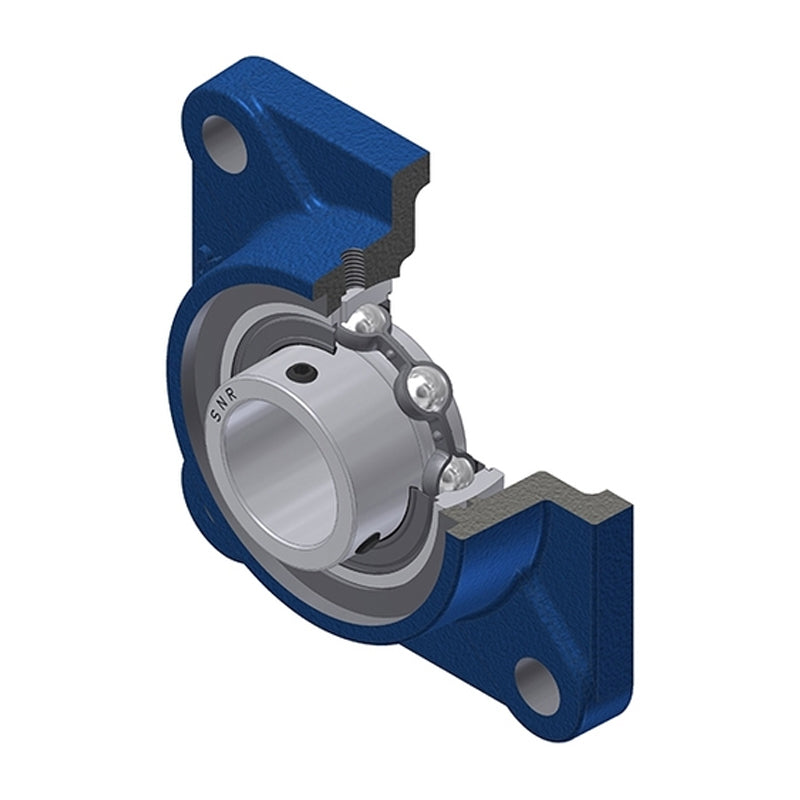

SNR USF207N Metric Four Bolt Square Cast Iron Flange Housing with 35mm Bore Insert - Allow 2-3 Days
SNR USF207N Metric Four Bolt Square Cast Iron Flange Housing with 35mm Bore Insert - Allow 2-3 Days
Regular price
$47.08
ex VAT
Regular price
Sale price
$47.08
ex VAT
In stock
Price Break
3+
$35.08
4+
$33.66
9+
$32.95
19+
$31.89
49+
$31.18
99+
$29.41
499+
$24.80
999+
$0.00
1999+
$0.00
2999+
$0.00
4999+
$0.00
Quantity
Couldn't load pickup availability
Description
Description
|
UCF or SF Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 35mm
- Style:
- USF
- Bolt Hole Centres:
- 92mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 35mm |
| A | 34mm |
| A1 | 15mm |
| A2 | 42.5mm |
| B | 32mm |
| e | 19mm |
| J | 92mm |
| L | 117mm |
| N | 14mm |
| S | 8.5mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 25.7 kN |
| Static load C0 | 15.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 5.5 Nm |
| Mass | 1.43 kg |
