SKU: USF211CO-SNR

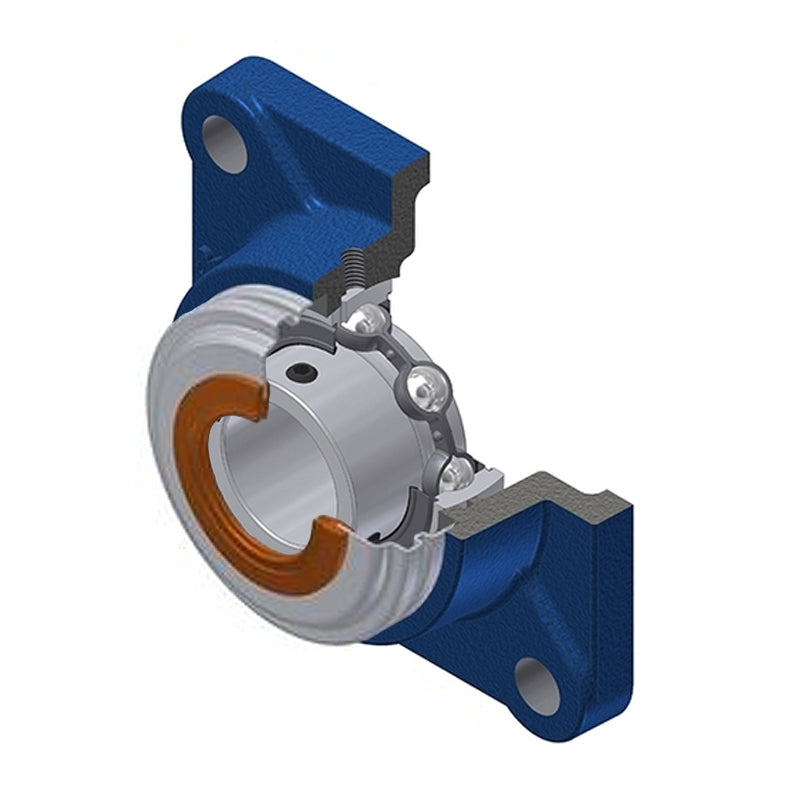

SNR USF211CO Metric Four Bolt Square Cast Iron Flange Housing with 55mm Bore Insert with Narrow Steel Plate Cover - Open Version - Allow 2-3 Days
SNR USF211CO Metric Four Bolt Square Cast Iron Flange Housing with 55mm Bore Insert with Narrow Steel Plate Cover - Open Version - Allow 2-3 Days
Regular price
$117.79
ex VAT
Regular price
Sale price
$117.79
ex VAT
In stock
Price Break
3+
$87.75
4+
$84.21
9+
$82.44
19+
$79.78
49+
$78.00
99+
$73.57
499+
$62.05
999+
$0.00
1999+
$0.00
2999+
$0.00
4999+
$0.00
Quantity
Couldn't load pickup availability
Description
Description
|
UCF or SF Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 55mm
- Style:
- USF
- Bolt Hole Centres:
- 130mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 55mm |
| A | 43mm |
| A1 | 18mm |
| A2 | 58.5mm |
| B | 45.3mm |
| e | 25mm |
| J | 130mm |
| L | 162mm |
| N | 19mm |
| S | 11.8mm |
| Dz | 110mm |
| Z | 62.8mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 43.55 kN |
| Static load C0 | 29.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 22 Nm |
| Mass | 3.351 kg |
