SKU: USFA201CC-SNR

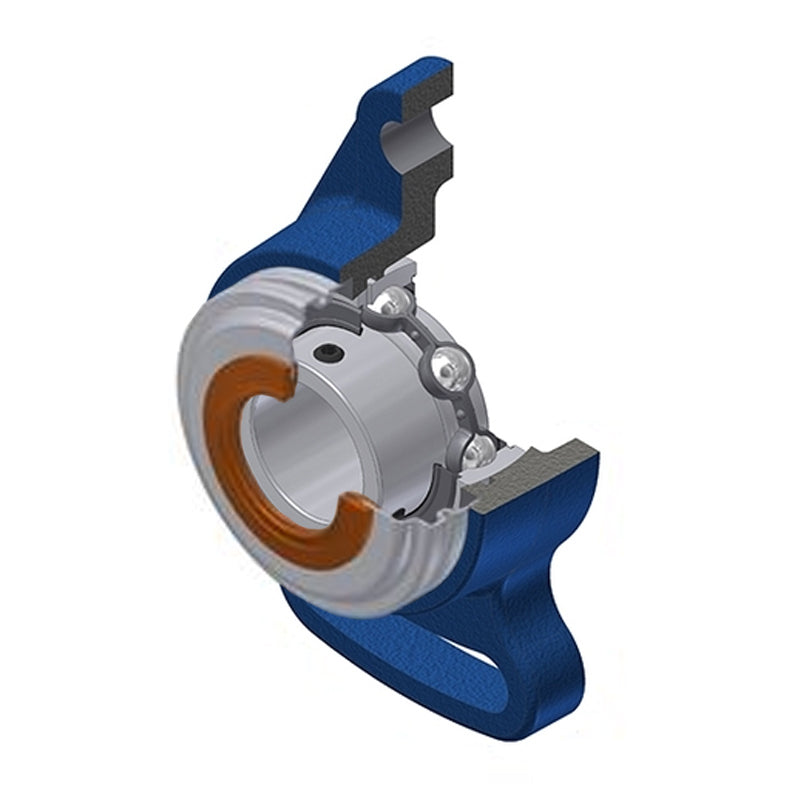

SNR USFA201CC Metric Cast Iron Adjustable Flange Unit with 12mm Insert with Narrow Steel Plate Cover - Closed Version - Allow 2-3 Days
SNR USFA201CC Metric Cast Iron Adjustable Flange Unit with 12mm Insert with Narrow Steel Plate Cover - Closed Version - Allow 2-3 Days
Regular price
$73.57
ex VAT
Regular price
Sale price
$73.57
ex VAT
In stock
Price Break
3+
$54.81
4+
$52.59
9+
$51.48
19+
$49.82
49+
$48.72
99+
$45.95
499+
$38.75
999+
$0.00
1999+
$0.00
2999+
$0.00
4999+
$0.00
Quantity
Couldn't load pickup availability
Share this product
Description
Description
USFA200 Series Cast Iron Adjustable Flange Units: These bearing units are supplied with a fully sealed bearing insert fitted in the adjustable flange housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 12mm
- Style:
- USFA
- Bolt Hole Centres:
- 78mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 12mm |
| A | 25.5mm |
| A1 | 12mm |
| A2 | 31mm |
| B | 22mm |
| e | 15mm |
| H | 102mm |
| J | 78mm |
| J1 | 40mm |
| L | 60mm |
| L1 | 54mm |
| N | 10mm |
| S | 6mm |
| Dz | 46mm |
| Z | 34.8mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 9.55 kN |
| Static load C0 | 4.78 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 3.5 Nm |
| Mass | 0.31 kg |
