SKU: USFA205CC-SNR

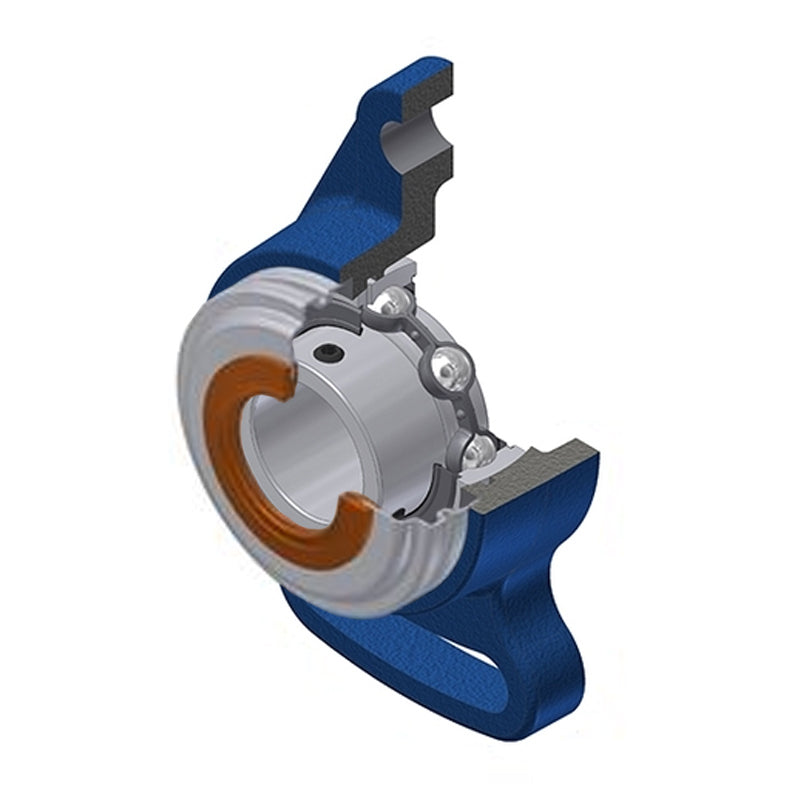

SNR USFA205CC Metric Cast Iron Adjustable Flange Unit with 25mm Insert with Narrow Steel Plate Cover - Closed Version - Allow 2-3 Days

SNR USFA205CC Metric Cast Iron Adjustable Flange Unit with 25mm Insert with Narrow Steel Plate Cover - Closed Version - Allow 2-3 Days
Regular price $73.58 ex VAT
Regular price Sale price $73.58 ex VAT
Sale Sold out

In stock

Price Break
3+ $54.82
4+ $52.60
9+ $51.49
19+ $49.83
49+ $48.73
99+ $45.96
499+ $38.76
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter d 25mm
A 27mm
A1 14mm
A2 35.5mm
B 27mm
e 16mm
H 125mm
J 98mm
J1 51mm
L 68mm
L1 65mm
N 12mm
S 7.5mm
Dz 60mm
Z 39.6mm
G M6x1
--- Load rating
Dynamic load C 14 kN
Static load C0 7.88 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 5.5 Nm
Mass 0.607 kg
