SKU: USFA207-SNR

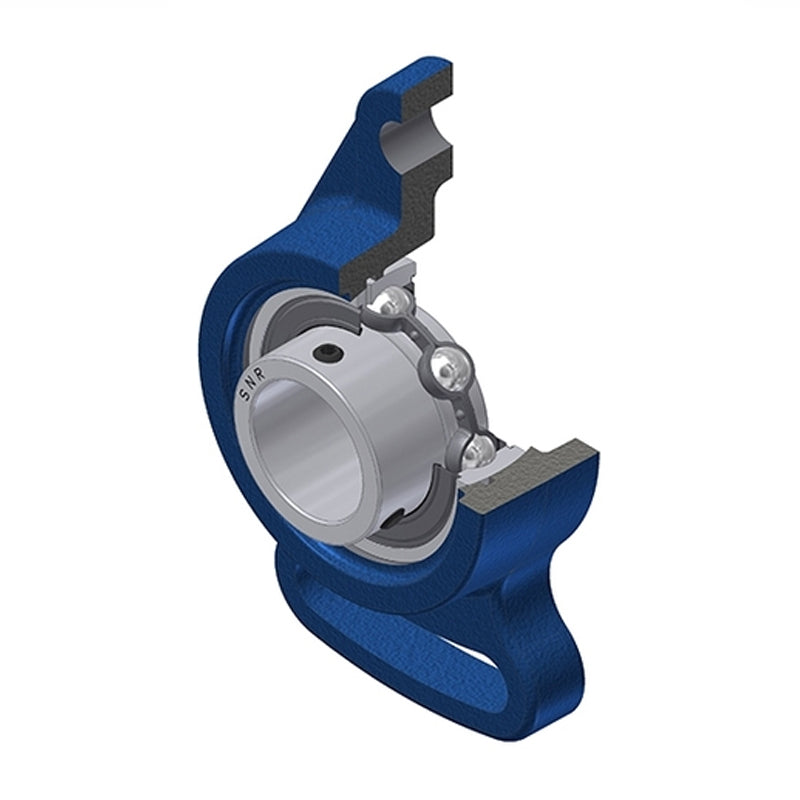

SNR USFA207 Metric Cast Iron Adjustable Flange Unit with 35mm Insert - Allow 2-3 Days

SNR USFA207 Metric Cast Iron Adjustable Flange Unit with 35mm Insert - Allow 2-3 Days
Regular price $41.20 ex VAT
Regular price Sale price $41.20 ex VAT
Sale Sold out

In stock

Price Break
3+ $30.69
4+ $29.45
9+ $28.83
19+ $27.90
49+ $27.28
99+ $25.73
499+ $21.70
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter d 35mm
A 34mm
A1 16mm
A2 42.5mm
B 32mm
e 19mm
H 161mm
J 130mm
J1 66mm
L 90mm
L1 82mm
N 15mm
S 8.5mm
G M6x1
--- Load rating
Dynamic load C 25.7 kN
Static load C0 15.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 5.5 Nm
Mass 1.22 kg
