SKU: USFA208-SNR

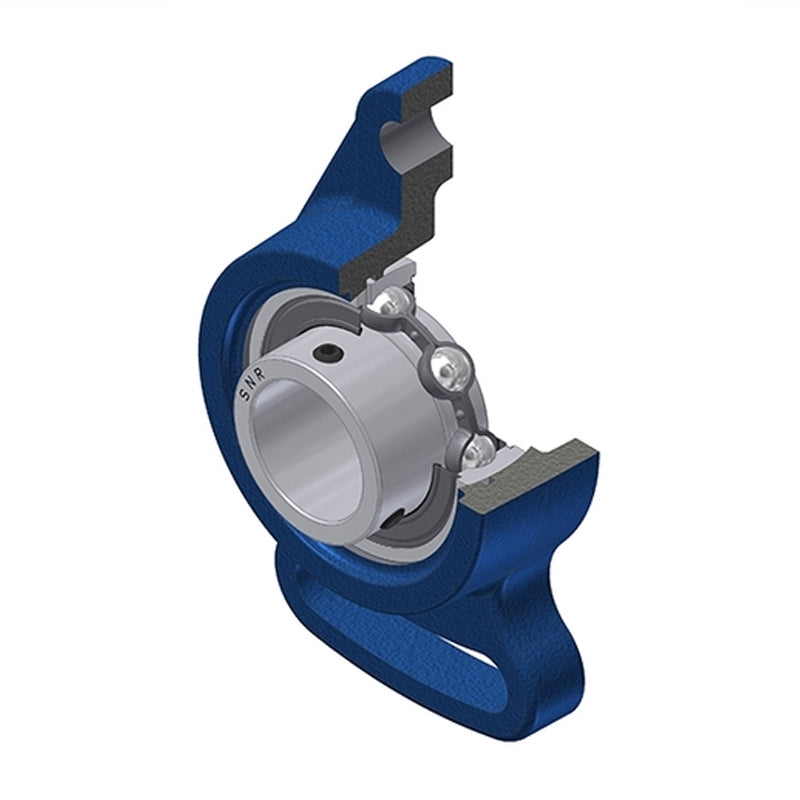

SNR USFA208 Metric Cast Iron Adjustable Flange Unit with 40mm Insert - Allow 2-3 Days

SNR USFA208 Metric Cast Iron Adjustable Flange Unit with 40mm Insert - Allow 2-3 Days
Regular price $47.11 ex VAT
Regular price Sale price $47.11 ex VAT
Sale Sold out

In stock

Price Break
3+ $35.10
4+ $33.68
9+ $32.97
19+ $31.91
49+ $31.20
99+ $29.42
499+ $24.82
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter d 40mm
A 36mm
A1 16mm
A2 46mm
B 34mm
e 21mm
H 175mm
J 144mm
J1 71mm
L 100mm
L1 87mm
N 15mm
S 9mm
G M6x1
--- Load rating
Dynamic load C 29.6 kN
Static load C0 18.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 11.5 Nm
Mass 1.6 kg
