SKU: USFA209CC-SNR

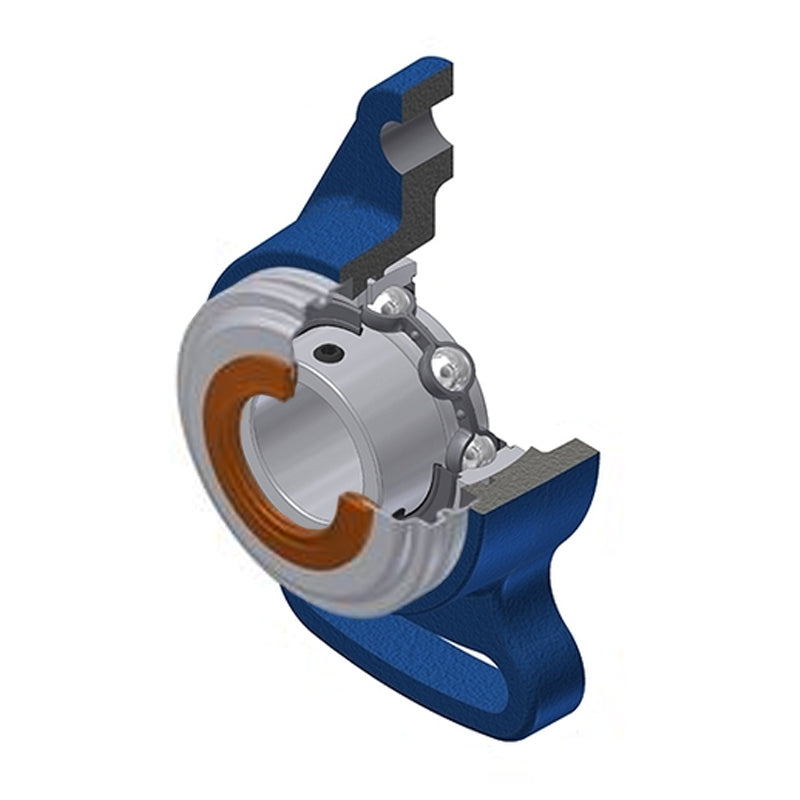

SNR USFA209CC Metric Cast Iron Adjustable Flange Unit with 45mm Insert with Narrow Steel Plate Cover - Closed Version - Allow 2-3 Days

SNR USFA209CC Metric Cast Iron Adjustable Flange Unit with 45mm Insert with Narrow Steel Plate Cover - Closed Version - Allow 2-3 Days
Regular price $88.33 ex VAT
Regular price Sale price $88.33 ex VAT
Sale Sold out

In stock

Price Break
3+ $65.81
4+ $63.15
9+ $61.82
19+ $59.82
49+ $58.49
99+ $55.17
499+ $46.53
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter d 45mm
A 38mm
A1 18mm
A2 53mm
B 41.2mm
e 22mm
H 181mm
J 148mm
J1 72mm
L 108mm
L1 90mm
N 15mm
S 10.2mm
Dz 95mm
Z 57.7mm
G M6x1
--- Load rating
Dynamic load C 31.85 kN
Static load C0 20.8 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 11.5 Nm
Mass 1.94 kg
