SKU: USFA211N-SNR

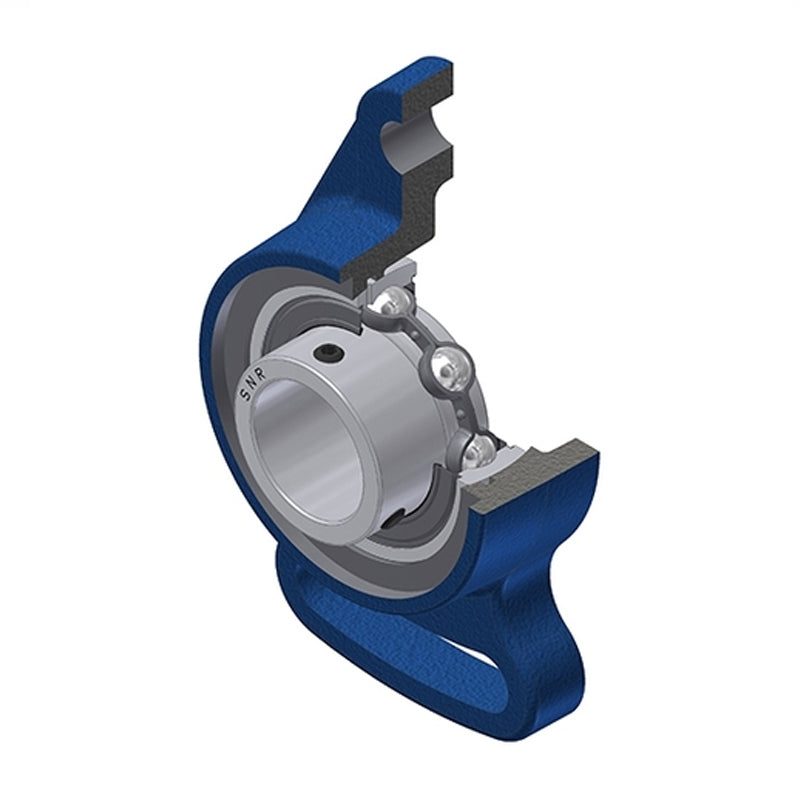

SNR USFA211N Metric Cast Iron Adjustable Flange Unit with 55mm Insert - Allow 2-3 Days
SNR USFA211N Metric Cast Iron Adjustable Flange Unit with 55mm Insert - Allow 2-3 Days
Regular price
$103.04
ex VAT
Regular price
Sale price
$103.04
ex VAT
In stock
Price Break
3+
$76.76
4+
$73.66
9+
$72.11
19+
$69.79
49+
$68.24
99+
$64.36
499+
$54.28
999+
$0.00
1999+
$0.00
2999+
$0.00
4999+
$0.00
Quantity
Couldn't load pickup availability
Share this product
Description
Description
USFA200 Series Cast Iron Adjustable Flange Units: These bearing units are supplied with a fully sealed bearing insert fitted in the adjustable flange housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 55mm
- Style:
- USFA
- Bolt Hole Centres:
- 184mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 55mm |
| A | 43mm |
| A1 | 20mm |
| A2 | 58.5mm |
| B | 45.3mm |
| e | 25mm |
| H | 219mm |
| J | 184mm |
| J1 | 86mm |
| L | 130mm |
| L1 | 104mm |
| N | 16mm |
| S | 11.8mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 43.55 kN |
| Static load C0 | 29.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 22 Nm |
| Mass | 3.07 kg |
