SKU: USFA212-SNR

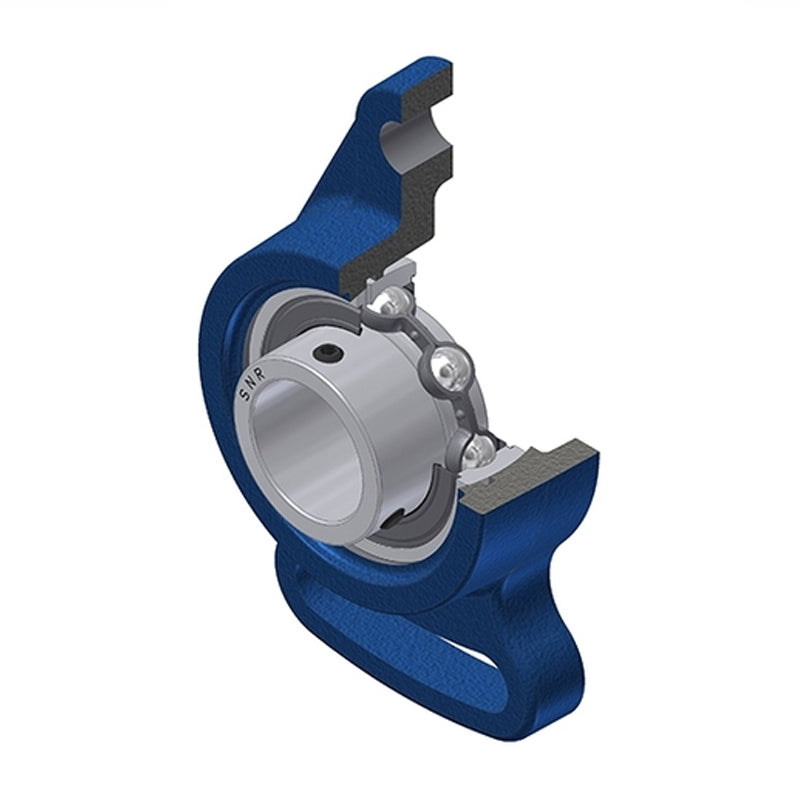

SNR USFA212 Metric Cast Iron Adjustable Flange Unit with 60mm Insert - Allow 2-3 Days

SNR USFA212 Metric Cast Iron Adjustable Flange Unit with 60mm Insert - Allow 2-3 Days
Regular price $103.11 ex VAT
Regular price Sale price $103.11 ex VAT
Sale Sold out

In stock

Price Break
3+ $76.81
4+ $73.71
9+ $72.16
19+ $69.83
49+ $68.28
99+ $64.40
499+ $54.31
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter d 60mm
A 48mm
A1 20mm
A2 67.8mm
B 53.7mm
e 29mm
H 250mm
J 202mm
J1 92mm
L 140mm
L1 118mm
N 23mm
S 14.9mm
G M6x1
--- Load rating
Dynamic load C 52.5 kN
Static load C0 32.8 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 22 Nm
Mass 4 kg
