SKU: USFC201CO-SNR

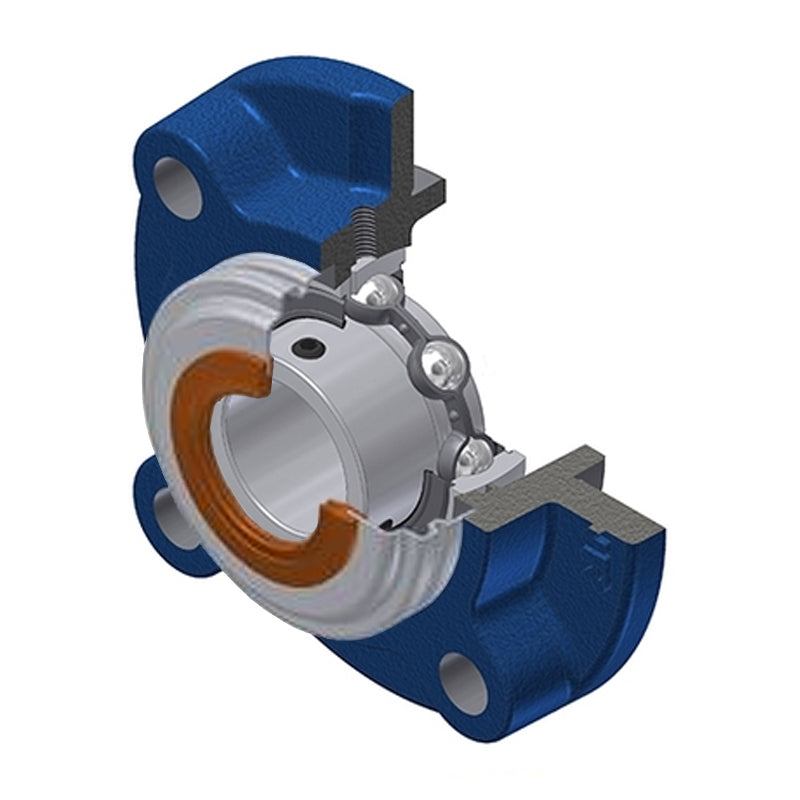

SNR USFC201CO Metric Four Bolt Cast Iron Round Flanged Housing with 12mm Insert with Narrow Steel Plate Cover - Open Version - Allow 2-3 Days
SNR USFC201CO Metric Four Bolt Cast Iron Round Flanged Housing with 12mm Insert with Narrow Steel Plate Cover - Open Version - Allow 2-3 Days
Regular price
$73.58
ex VAT
Regular price
Sale price
$73.58
ex VAT
In stock
Price Break
3+
$54.82
4+
$52.60
9+
$51.49
19+
$49.83
49+
$48.73
99+
$45.96
499+
$38.76
999+
$0.00
1999+
$0.00
2999+
$0.00
4999+
$0.00
Quantity
Couldn't load pickup availability
Share this product
Description
Description
USFC200 Series 4 Bolt Cast Iron Round Flanged Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the round cast iron housing and include a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar with a grub screw to facilitate securing the bearing to the shaft after installation. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, eccentric collar/grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 12mm
- Style:
- USFC
- Pitch Circle Diameter:
- 70mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 12mm |
| A | 23mm |
| A1 | 5mm |
| A2 | 26mm |
| A4 | 19mm |
| B | 22mm |
| e | 10mm |
| H3 | 55mm |
| J | 70mm |
| L | 90mm |
| N | 12mm |
| S | 6mm |
| Dz | 46mm |
| Z | 34.5mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 9.55 kN |
| Static load C0 | 4.78 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 3.5 Nm |
| Mass | 0.474 kg |
