SKU: USFC209CC-SNR

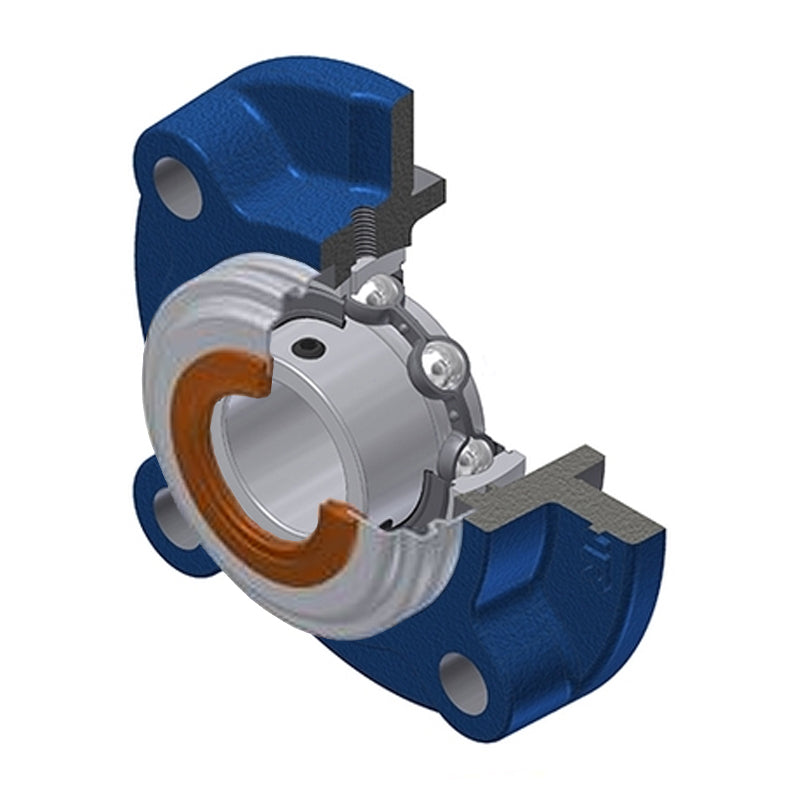

SNR USFC209CC Metric Four Bolt Cast Iron Round Flanged Housing with 45mm Insert with Narrow Steel Plate Cover - Closed Version - Allow 2-3 Days
SNR USFC209CC Metric Four Bolt Cast Iron Round Flanged Housing with 45mm Insert with Narrow Steel Plate Cover - Closed Version - Allow 2-3 Days
Regular price
$88.33
ex VAT
Regular price
Sale price
$88.33
ex VAT
In stock
Price Break
3+
$65.81
4+
$63.15
9+
$61.82
19+
$59.82
49+
$58.49
99+
$55.17
499+
$46.53
999+
$0.00
1999+
$0.00
2999+
$0.00
4999+
$0.00
Quantity
Couldn't load pickup availability
Share this product
Description
Description
USFC200 Series 4 Bolt Cast Iron Round Flanged Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the round cast iron housing and include a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar with a grub screw to facilitate securing the bearing to the shaft after installation. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, eccentric collar/grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 45mm
- Style:
- USFC
- Pitch Circle Diameter:
- 132mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 45mm |
| A | 38mm |
| A1 | 10mm |
| A2 | 41mm |
| A4 | 26mm |
| B | 41.2mm |
| e | 10mm |
| H3 | 105mm |
| J | 132mm |
| L | 160mm |
| N | 16mm |
| S | 10.2mm |
| Dz | 95mm |
| Z | 57.7mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 31.85 kN |
| Static load C0 | 20.8 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 11.5 Nm |
| Mass | 2.47 kg |
