SKU: USFC210CO-SNR

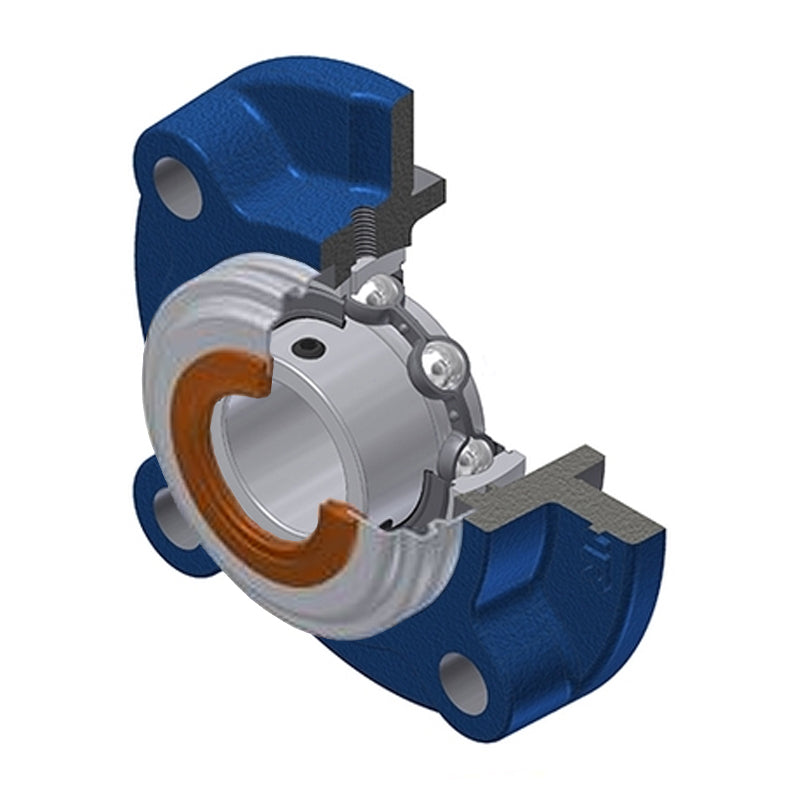

SNR USFC210CO Metric Four Bolt Cast Iron Round Flanged Housing with 50mm Insert with Narrow Steel Plate Cover - Open Version - Allow 2-3 Days
SNR USFC210CO Metric Four Bolt Cast Iron Round Flanged Housing with 50mm Insert with Narrow Steel Plate Cover - Open Version - Allow 2-3 Days
Regular price
$103.00
ex VAT
Regular price
Sale price
$103.00
ex VAT
In stock
Price Break
3+
$76.73
4+
$73.63
9+
$72.08
19+
$69.76
49+
$68.21
99+
$64.33
499+
$54.26
999+
$0.00
1999+
$0.00
2999+
$0.00
4999+
$0.00
Quantity
Couldn't load pickup availability
Share this product
Description
Description
USFC200 Series 4 Bolt Cast Iron Round Flanged Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the round cast iron housing and include a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar with a grub screw to facilitate securing the bearing to the shaft after installation. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, eccentric collar/grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 50mm
- Style:
- USFC
- Pitch Circle Diameter:
- 138mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 50mm |
| A | 40mm |
| A1 | 14mm |
| A2 | 42.6mm |
| A4 | 28mm |
| B | 43.5mm |
| e | 10mm |
| H3 | 110mm |
| J | 138mm |
| L | 165mm |
| N | 16mm |
| S | 10.9mm |
| Dz | 100mm |
| Z | 59.8mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 35.1 kN |
| Static load C0 | 23.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 11.5 Nm |
| Mass | 2.857 kg |
