SKU: USFC212-SNR

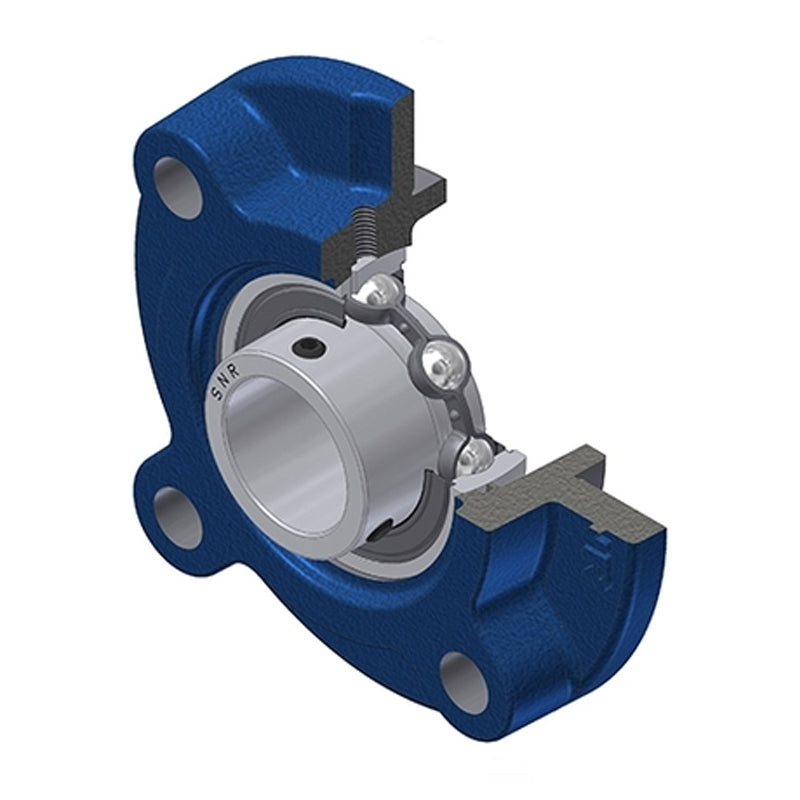

SNR USFC212 Metric Four Bolt Cast Iron Round Flanged Housing with 60mm Insert - Allow 2-3 Days
SNR USFC212 Metric Four Bolt Cast Iron Round Flanged Housing with 60mm Insert - Allow 2-3 Days
Regular price
$88.23
ex VAT
Regular price
Sale price
$88.23
ex VAT
In stock
Quantity
Couldn't load pickup availability
Description
Description
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 60mm
- Style:
- USFC
- Pitch Circle Diameter:
- 160mm
Technical
Technical

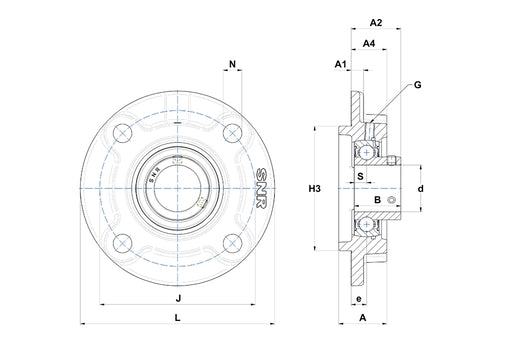

| --- | Dimensions |
|---|---|
| Shaft diameter d | 60mm |
| A | 48mm |
| A1 | 15mm |
| A2 | 55.8mm |
| A4 | 36mm |
| B | 53.7mm |
| e | 17mm |
| H3 | 135mm |
| J | 160mm |
| L | 195mm |
| N | 19mm |
| S | 14.9mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 52.5 kN |
| Static load C0 | 32.8 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 22 Nm |
| Mass | 4.69 kg |
