SKU: USFCE205-SNR

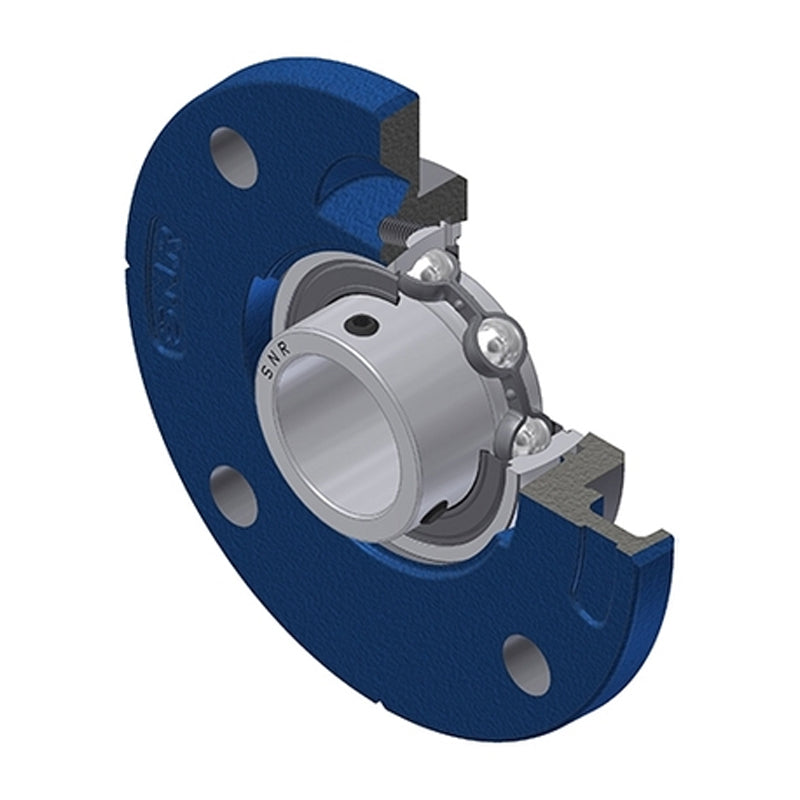

SNR USFCE205 Metric Four Bolt Cast Iron Round Flanged Housing with 25mm Insert - Allow 2-3 Days
SNR USFCE205 Metric Four Bolt Cast Iron Round Flanged Housing with 25mm Insert - Allow 2-3 Days
Regular price
$31.30
ex VAT
Regular price
Sale price
$31.30
ex VAT
In stock
Price Break
3+
$20.97
4+
$19.79
9+
$19.56
19+
$19.32
49+
$19.09
99+
$18.85
499+
$17.67
999+
$17.44
1999+
$17.20
2999+
$16.96
4999+
$16.49
Quantity
Couldn't load pickup availability
Description
Description
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 25mm
- Style:
- USFCE
- Pitch Circle Diameter:
- 90mm
Technical
Technical

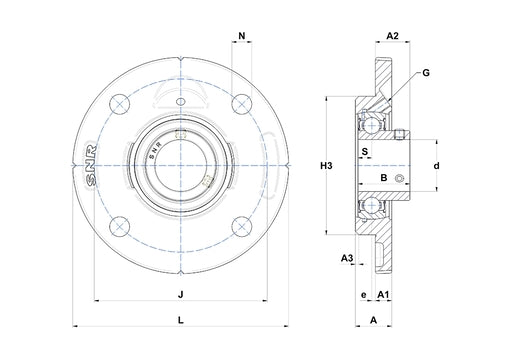

| --- | Dimensions |
|---|---|
| Shaft diameter | 25mm |
| A | 20mm |
| A1 | 9mm |
| A2 | 17mm |
| A3 | 2mm |
| B | 27mm |
| e | -2.5mm |
| H3 | 70mm |
| J | 90mm |
| L | 115mm |
| N | 9mm |
| S | 7.5mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 14 kN |
| Static load C0 | 7.88 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 5.5 Nm |
| Mass | 0.74 kg |
