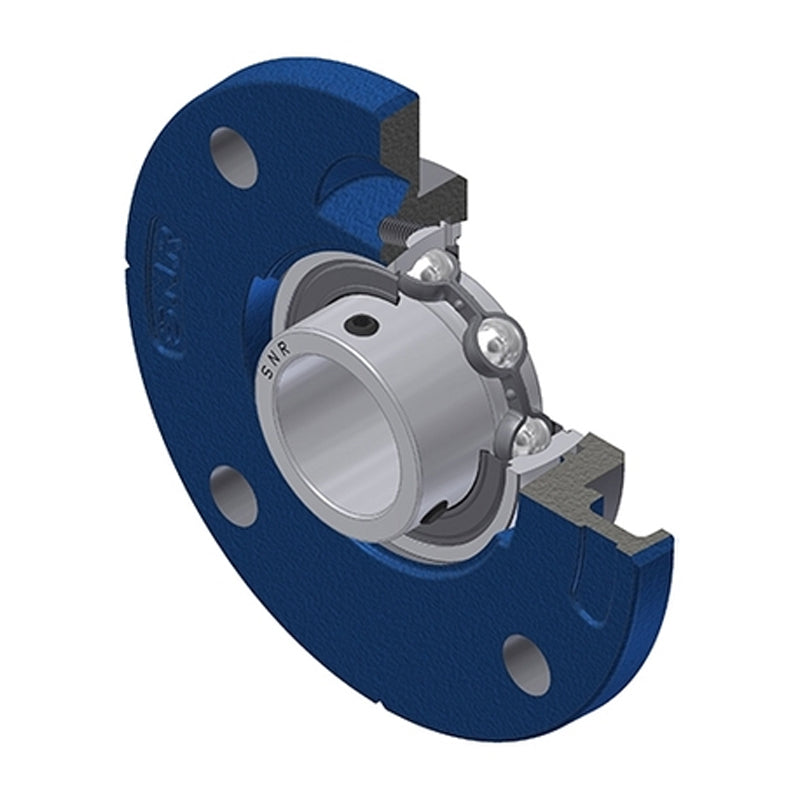

SNR USFCE208 Metric Four Bolt Cast Iron Round Flanged Housing with 40mm Insert - Allow 2-3 Days
SNR USFCE208 Metric Four Bolt Cast Iron Round Flanged Housing with 40mm Insert - Allow 2-3 Days
Regular price
$48.67
ex VAT
Regular price
Sale price
$48.67
ex VAT
In stock
Price Break
3+
$32.60
4+
$30.77
9+
$30.40
19+
$30.04
49+
$29.67
99+
$29.30
499+
$27.47
999+
$27.10
1999+
$26.74
2999+
$26.37
4999+
$25.64
Quantity
Couldn't load pickup availability
Description
Description
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 40mm
- Style:
- USFCE
- Pitch Circle Diameter:
- 120mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 40mm |
| A | 23mm |
| A1 | 11.5mm |
| A2 | 24mm |
| A3 | 2mm |
| B | 34mm |
| e | -1mm |
| H3 | 100mm |
| J | 120mm |
| L | 145mm |
| N | 11.5mm |
| S | 9mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 29.6 kN |
| Static load C0 | 18.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 11.5 Nm |
| Mass | 1.6 kg |
