• SNR USFD202 Metric Two Bolt Oval Cast Iron Flange Housing with 15mm Bore Insert - Allow 2-3 Days
  • SNR
1 2

SKU: USFD202-SNR

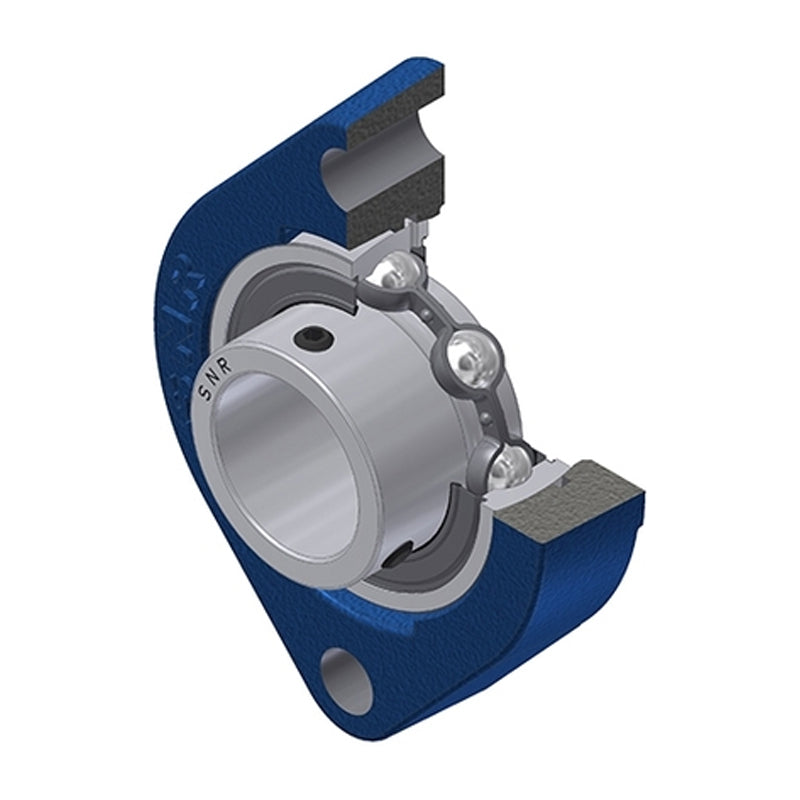

SNR USFD202 Metric Two Bolt Oval Cast Iron Flange Housing with 15mm Bore Insert - Allow 2-3 Days

SNR USFD202 Metric Two Bolt Oval Cast Iron Flange Housing with 15mm Bore Insert - Allow 2-3 Days
$26.19 ex VAT
$26.19 ex VAT
Sale Sold out

In stock

Price Break
3+ $17.54
4+ $16.55
9+ $16.36
19+ $16.16
49+ $15.96
99+ $15.77
499+ $14.78
999+ $14.58
1999+ $14.39
2999+ $14.19
4999+ $13.79

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Inside Diameter:
15mm
Style:
USFD
Bolt Hole Centres:
24.4mm
Technical

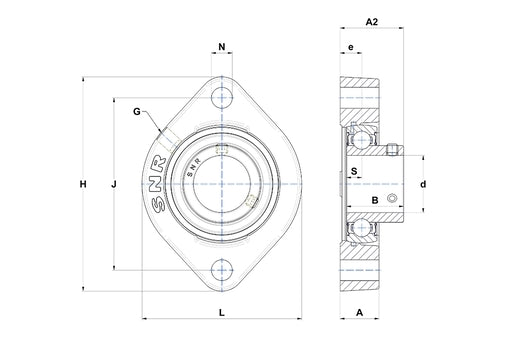

--- Dimensions
Shaft diameter 15mm
A 15mm
A2 24.4mm
B 22mm
e 8.4mm
H 81mm
J 63.5mm
L 58.7mm
N 6.5mm
S 6mm
G M6x1
--- Load rating
Dynamic load C 9.55 kN
Static load C0 4.78 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 3.5 Nm
Mass 0.3 kg
