• SNR USFE205 Metric Four Bolt Square Cast Iron Flange Housing with 25mm Bore Insert - Allow 2-3 Days
  • SNR
1 2

SKU: USFE205-SNR

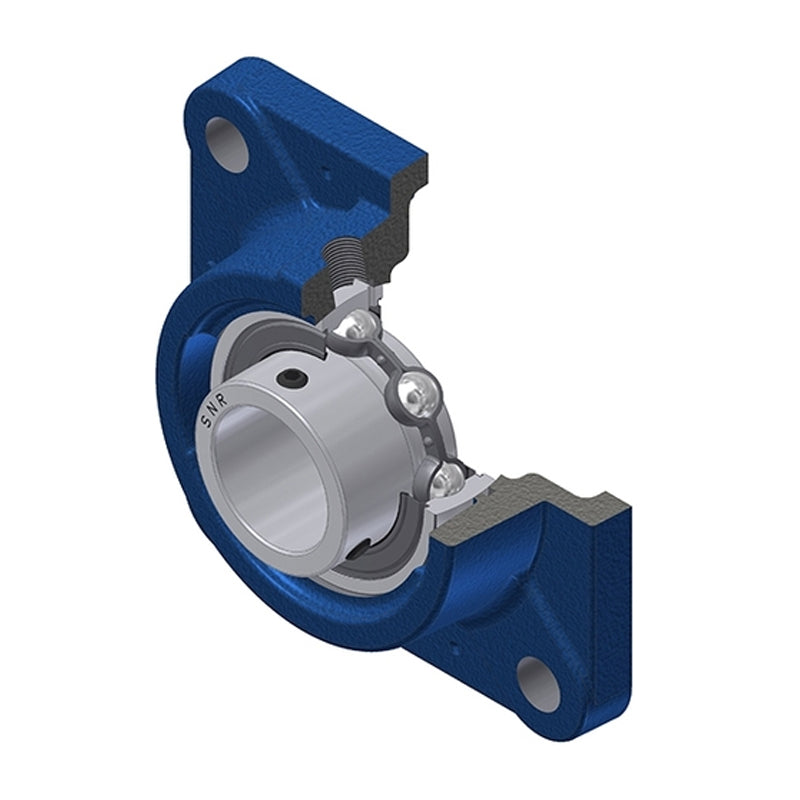

SNR USFE205 Metric Four Bolt Square Cast Iron Flange Housing with 25mm Bore Insert - Allow 2-3 Days

SNR USFE205 Metric Four Bolt Square Cast Iron Flange Housing with 25mm Bore Insert - Allow 2-3 Days
$29.46 ex VAT
$29.46 ex VAT
Sale Sold out

In stock

Price Break
3+ $19.74
4+ $18.63
9+ $18.41
19+ $18.18
49+ $17.96
99+ $17.74
499+ $16.63
999+ $16.41
1999+ $16.19
2999+ $15.97
4999+ $15.52

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Inside Diameter:
25mm
Style:
USFE
Bolt Hole Centres:
70mm
Technical
--- Dimensions
Shaft diameter 25mm
A 30mm
A1 11mm
A2 38.5mm
B 27mm
e 19mm
J 70mm
L 95mm
N 11.5mm
S 7.5mm
G R1/8″
--- Load rating
Dynamic load C 14 kN
Static load C0 7.88 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 5.5 Nm
Mass 0.77 kg
