SKU: USFE211CC-SNR

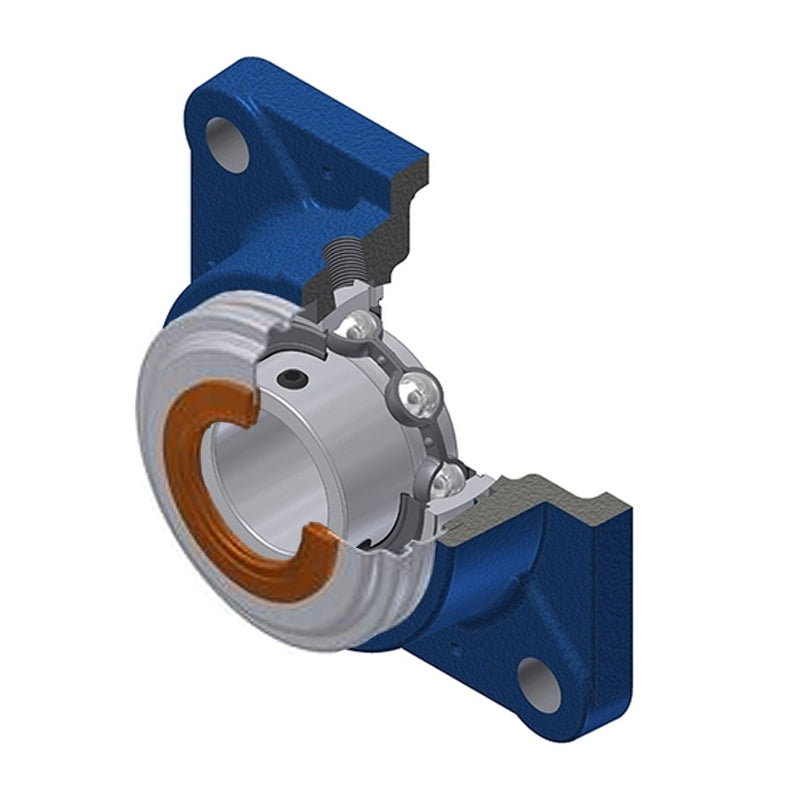

SNR USFE211CC Metric Four Bolt Square Cast Iron Flange Housing with 55mm Bore Insert with Narrow Steel Plate Cover - Closed Version - Allow 2-3 Days

SNR USFE211CC Metric Four Bolt Square Cast Iron Flange Housing with 55mm Bore Insert with Narrow Steel Plate Cover - Closed Version - Allow 2-3 Days
Regular price $117.83 ex VAT
Regular price Sale price $117.83 ex VAT
Sale Sold out

In stock

Price Break
3+ $87.78
4+ $84.24
9+ $82.46
19+ $79.80
49+ $78.03
99+ $73.60
499+ $62.07
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter 55mm
A 48.5mm
A1 15mm
A2 64.5mm
B 45.3mm
e 31mm
J 130mm
L 162mm
N 18mm
S 11.8mm
Dz 110mm
Z 68.6mm
G R1/8″
--- Load rating
Dynamic load C 43.55 kN
Static load C0 29.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 22 Nm
Mass 3.721 kg
