SKU: USFEE205-SNR

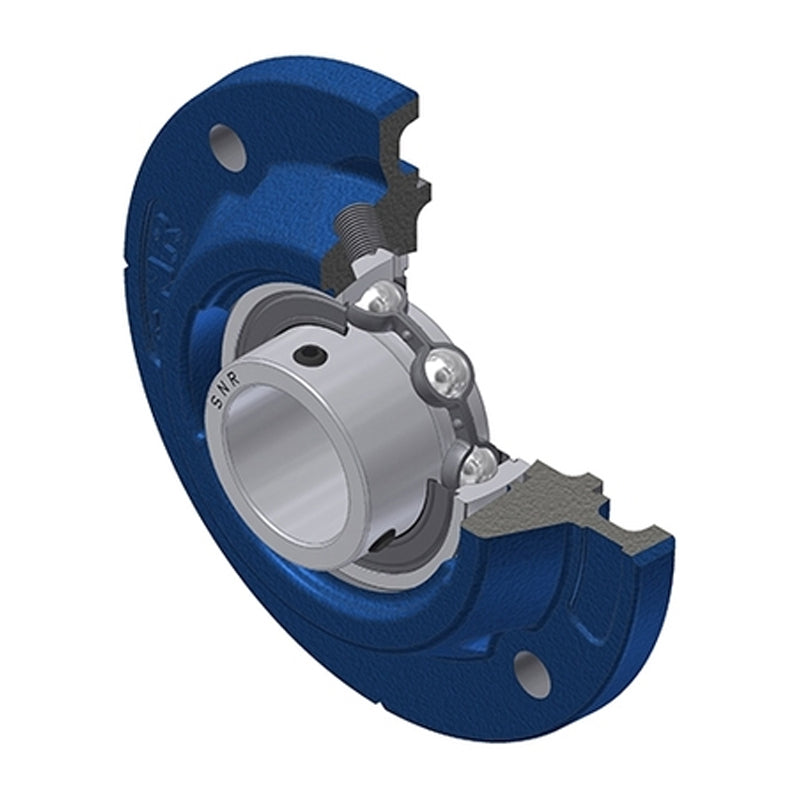

SNR USFEE205 Metric Four Bolt Cast Iron Round Flanged Housing with 25mm Insert - Allow 2-3 Days
SNR USFEE205 Metric Four Bolt Cast Iron Round Flanged Housing with 25mm Insert - Allow 2-3 Days
Regular price
$35.32
ex VAT
Regular price
Sale price
$35.32
ex VAT
In stock
Price Break
3+
$26.31
4+
$25.25
9+
$24.72
19+
$23.92
49+
$23.39
99+
$22.06
499+
$18.61
999+
$0.00
1999+
$0.00
2999+
$0.00
4999+
$0.00
Quantity
Couldn't load pickup availability
Share this product
Description
Description
USFEE200 Series 4 Bolt Cast Iron Round Flanged Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the round cast iron housing and include a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar with a grub screw to facilitate securing the bearing to the shaft after installation. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, eccentric collar/grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 25mm
- Style:
- USFEE
- Pitch Circle Diameter:
- 92mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 25mm |
| A | 23.5mm |
| A1 | 9mm |
| A2 | 29mm |
| A4 | 20.5mm |
| B | 27mm |
| e | 9.5mm |
| H3 | 75mm |
| J | 92mm |
| L | 115mm |
| N | 9mm |
| S | 7.5mm |
| G | R1/8″ |
| --- | Load rating |
| Dynamic load C | 14 kN |
| Static load C0 | 7.88 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 5.5 Nm |
| Mass | 0.77 kg |
