• SNR USFEE209 Metric Four Bolt Cast Iron Round Flanged Housing with 45mm Insert - Allow 2-3 Days
  • SNR
1 2

SKU: USFEE209-SNR

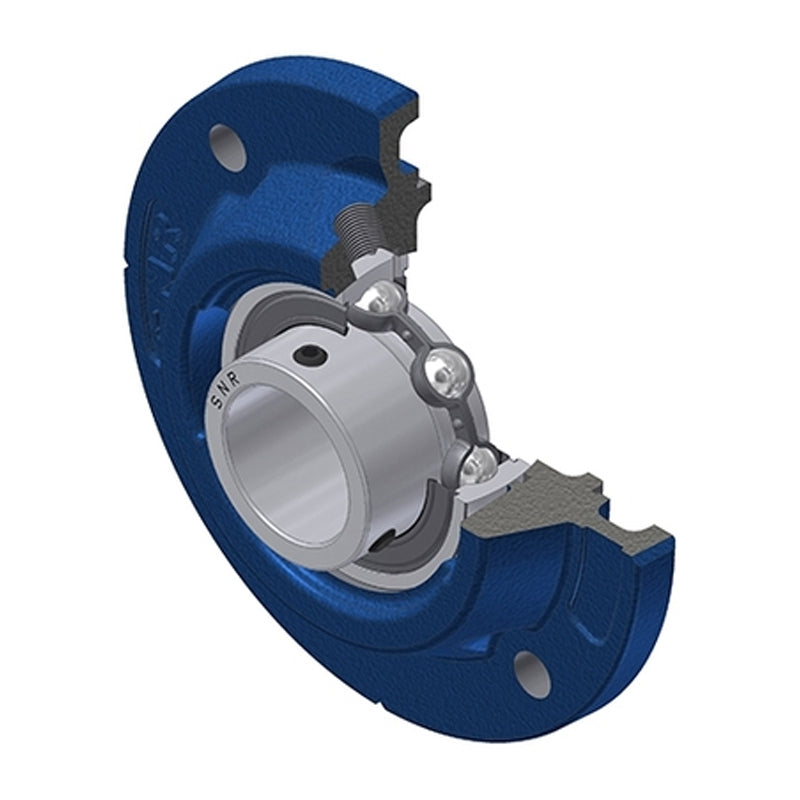

SNR USFEE209 Metric Four Bolt Cast Iron Round Flanged Housing with 45mm Insert - Allow 2-3 Days

SNR USFEE209 Metric Four Bolt Cast Iron Round Flanged Housing with 45mm Insert - Allow 2-3 Days
$53.79 ex VAT
$53.79 ex VAT
Sale Sold out

In stock

Price Break
3+ $36.03
4+ $34.01
9+ $33.60
19+ $33.20
49+ $32.79
99+ $32.39
499+ $30.36
999+ $29.96
1999+ $29.55
2999+ $29.15
4999+ $28.34

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Inside Diameter:
45mm
Style:
USFEE
Pitch Circle Diameter:
130mm
Technical
--- Dimensions
Shaft diameter 45mm
A 31.5mm
A1 12mm
A2 42.5mm
A4 27.5mm
B 41.2mm
e 11.5mm
H3 105mm
J 130mm
L 155mm
N 14mm
S 10.2mm
G R1/8″
--- Load rating
Dynamic load C 31.85 kN
Static load C0 20.8 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 11.5 Nm
Mass 2.05 kg
