SKU: USFEE212-SNR
SNR USFEE212 Metric Four Bolt Cast Iron Round Flanged Housing with 60mm Insert - Allow 2-3 Days
SNR USFEE212 Metric Four Bolt Cast Iron Round Flanged Housing with 60mm Insert - Allow 2-3 Days
Regular price
$132.46
ex VAT
Regular price
Sale price
$132.46
ex VAT
In stock
Price Break
3+
$98.68
4+
$94.70
9+
$92.70
19+
$89.71
49+
$87.72
99+
$82.73
499+
$69.78
999+
$0.00
1999+
$0.00
2999+
$0.00
4999+
$0.00
Quantity
Couldn't load pickup availability
Share this product
Description
Description

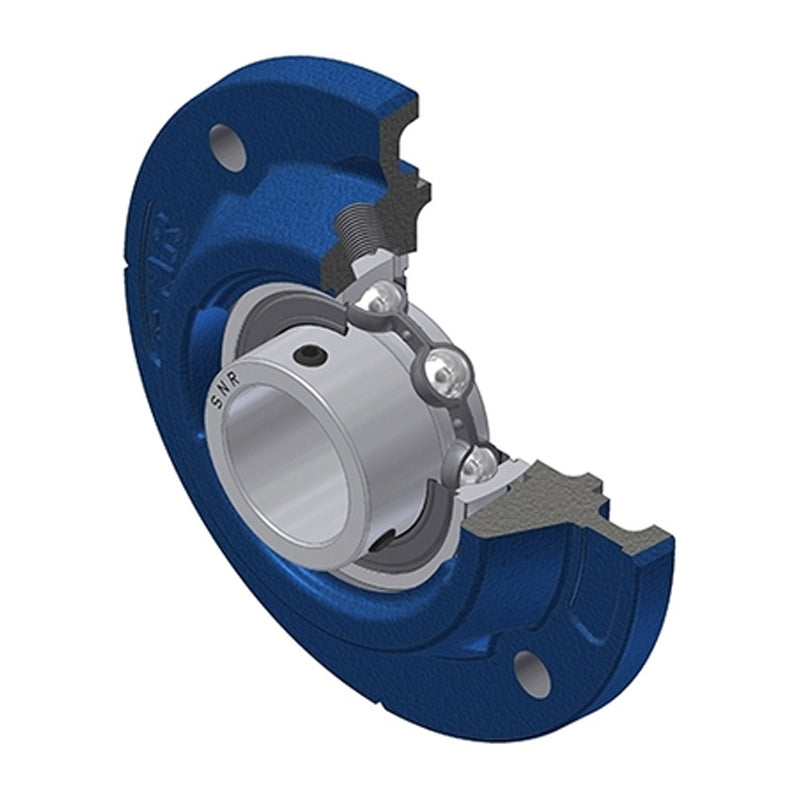

USFEE200 Series 4 Bolt Cast Iron Round Flanged Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the round cast iron housing and include a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar with a grub screw to facilitate securing the bearing to the shaft after installation. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, eccentric collar/grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 60mm
- Style:
- USFEE
- Pitch Circle Diameter:
- 165mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 60mm |
| A | 40.5mm |
| A1 | 16mm |
| A2 | 55.8mm |
| A4 | 36.5mm |
| B | 53.7mm |
| e | 17mm |
| H3 | 140mm |
| J | 165mm |
| L | 195mm |
| N | 14mm |
| S | 14.9mm |
| G | R1/8″ |
| --- | Load rating |
| Dynamic load C | 52.5 kN |
| Static load C0 | 32.8 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 22 Nm |
| Mass | 4.3 kg |
