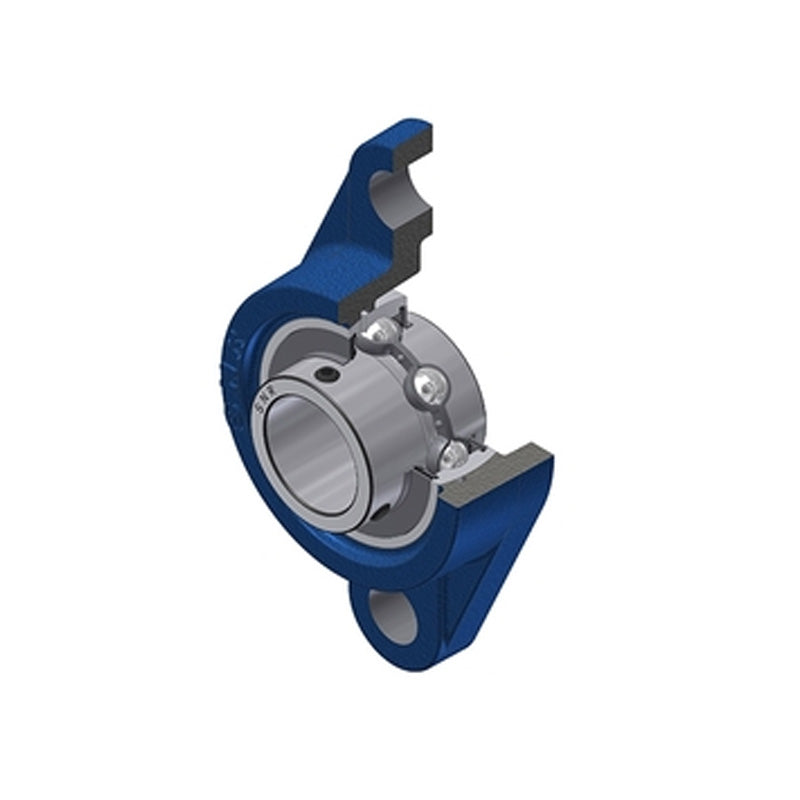

SNR USFL205-16 Imperial Two Bolt Oval Cast Iron Flange Housing with 1 inch Bore Insert
SNR USFL205-16 Imperial Two Bolt Oval Cast Iron Flange Housing with 1 inch Bore Insert
Regular price
$29.46
ex VAT
Regular price
Sale price
$29.46
ex VAT
In stock
Price Break
3+
$19.74
4+
$18.63
9+
$18.41
19+
$18.18
49+
$17.96
99+
$17.74
499+
$16.63
999+
$16.41
1999+
$16.19
2999+
$15.97
4999+
$15.52
Quantity
Couldn't load pickup availability
Share this product
Description
Description
USFL200 Series 2 Bolt Cast Iron Oval Flange Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 25.4mm = 1 Inch
- Style:
- USFL
- Bolt Hole Centres:
- 99mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 1 inch |
| A | 27mm |
| A1 | 13mm |
| A2 | 35.5mm |
| B | 27mm |
| e | 16mm |
| H | 130mm |
| J | 99mm |
| L | 68mm |
| N | 16mm |
| S | 7.5mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 14 kN |
| Static load C0 | 7.88 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 3.7 Nm |
| Mass | 0.57 kg |
