SKU: USFL209-26-SNR

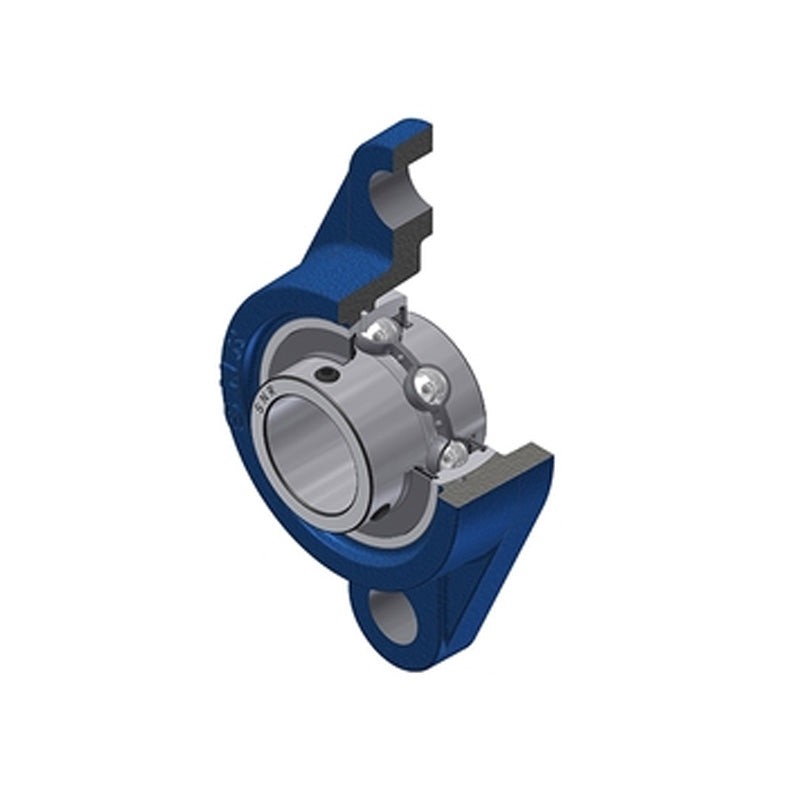

SNR USFL209-26 Imperial Two Bolt Oval Cast Iron Flange Housing with 1-5/8 inch Bore Insert - Allow 2-3 Days
SNR USFL209-26 Imperial Two Bolt Oval Cast Iron Flange Housing with 1-5/8 inch Bore Insert - Allow 2-3 Days
Regular price
$58.91
ex VAT
Regular price
Sale price
$58.91
ex VAT
In stock
Price Break
3+
$43.89
4+
$42.11
9+
$41.23
19+
$39.90
49+
$39.01
99+
$36.79
499+
$31.03
999+
$0.00
1999+
$0.00
2999+
$0.00
4999+
$0.00
Quantity
Couldn't load pickup availability
Share this product
Description
Description
USFL200 Series 2 Bolt Cast Iron Oval Flange Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 41.28mm = 1.625 (1-5/8) inch
- Style:
- USFL
- Bolt Hole Centres:
- 148mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 1-5/8 inch |
| A | 38mm |
| A1 | 16mm |
| A2 | 53mm |
| B | 41.2mm |
| e | 22mm |
| H | 188mm |
| J | 148mm |
| L | 108mm |
| N | 19mm |
| S | 10.2mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 31.85 kN |
| Static load C0 | 20.8 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 8 Nm |
| Mass | 1.92 kg |
