SKU: USFLE206CC-SNR

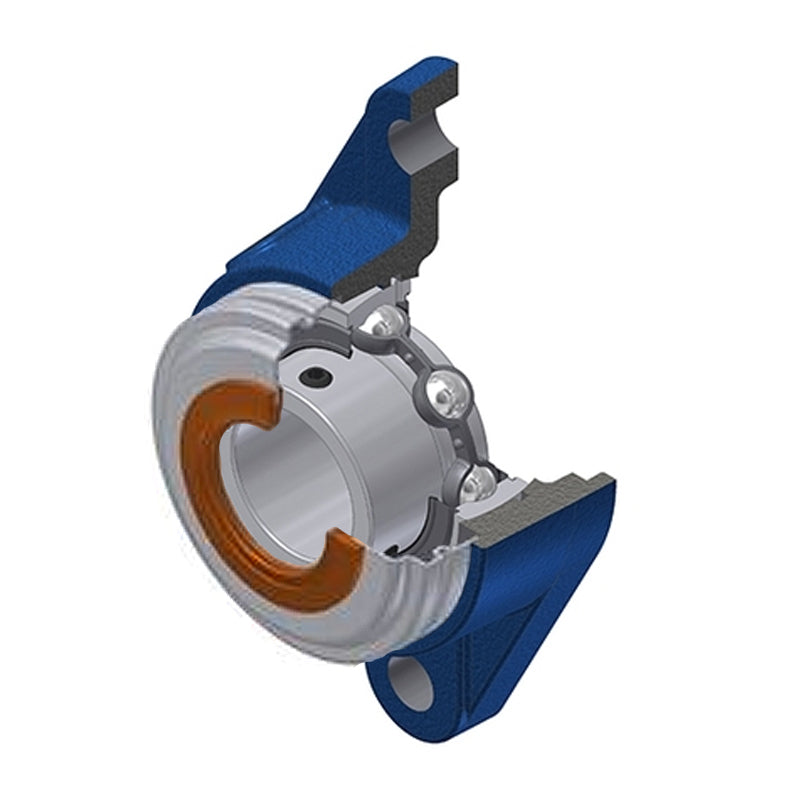

SNR USFLE206CC Metric Two Bolt Oval Cast Iron Flange Housing with 30mm Bore Insert with Narrow Steel Plate Cover - Closed Version - Allow 2-3 Days
SNR USFLE206CC Metric Two Bolt Oval Cast Iron Flange Housing with 30mm Bore Insert with Narrow Steel Plate Cover - Closed Version - Allow 2-3 Days
Regular price
$73.61
ex VAT
Regular price
Sale price
$73.61
ex VAT
In stock
Price Break
3+
$54.84
4+
$52.62
9+
$51.51
19+
$49.85
49+
$48.74
99+
$45.97
499+
$38.77
999+
$0.00
1999+
$0.00
2999+
$0.00
4999+
$0.00
Quantity
Couldn't load pickup availability
Share this product
Description
Description
USFLE200 Series 2 Bolt Cast Iron Oval Flange Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 30mm
- Style:
- USFLE
- Bolt Hole Centres:
- 116.5mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 30mm |
| A | 32.1mm |
| A1 | 12mm |
| A2 | 42mm |
| B | 30mm |
| e | 20mm |
| H | 142mm |
| J | 116.5mm |
| L | 80mm |
| N | 11.5mm |
| S | 8mm |
| Dz | 70mm |
| Z | 46.3mm |
| G | R1/8″ |
| --- | Load rating |
| Dynamic load C | 19.5 kN |
| Static load C0 | 11.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 5.5 Nm |
| Mass | 0.82 kg |
