SKU: USFTE204-SNR

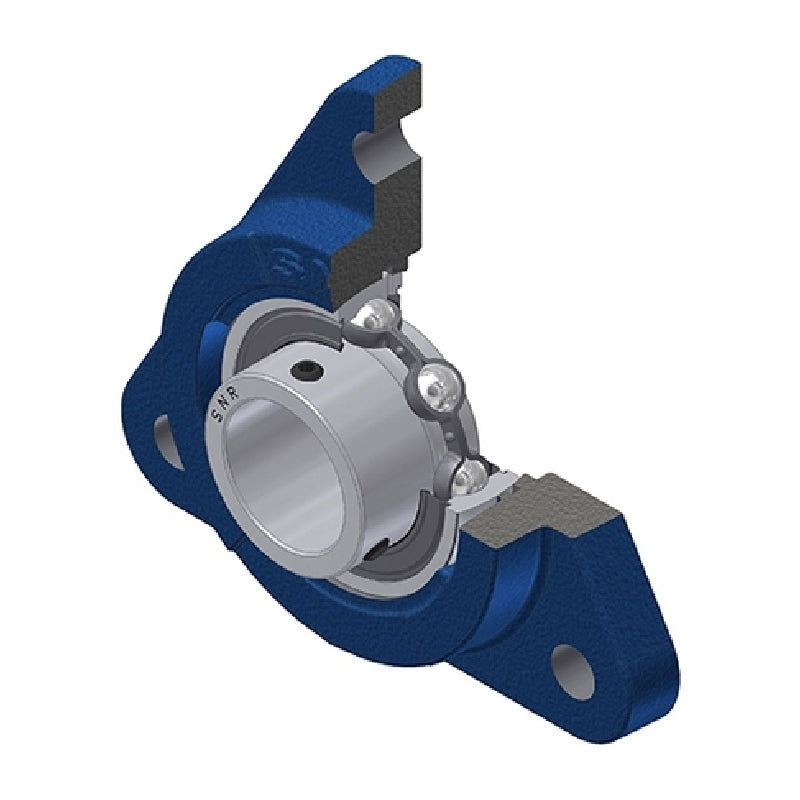

SNR USFTE204 Metric Three Bolt Cast Iron Triangular Housing with 20mm Bore Insert - Allow 2-3 Days
SNR USFTE204 Metric Three Bolt Cast Iron Triangular Housing with 20mm Bore Insert - Allow 2-3 Days
Regular price
$29.44
ex VAT
Regular price
Sale price
$29.44
ex VAT
In stock
Price Break
3+
$21.93
4+
$21.04
9+
$20.60
19+
$19.94
49+
$19.49
99+
$18.38
499+
$15.51
999+
$0.00
1999+
$0.00
2999+
$0.00
4999+
$0.00
Quantity
Couldn't load pickup availability
Share this product
Description
Description
USFTE200 Series 3 Bolt Cast Iron Triangular Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 20mm
- Style:
- USFTE
- Bolt Hole Centres:
- 89.5mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 20mm |
| A | 20mm |
| A1 | 11mm |
| A2 | 29mm |
| B | 25mm |
| e | 11mm |
| H | 92mm |
| H1 | 35mm |
| J | 89.5mm |
| N | 11.5mm |
| S | 7mm |
| G | R1/8″ |
| --- | Load rating |
| Dynamic load C | 12.8 kN |
| Static load C0 | 6.65 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 5.5 Nm |
| Mass | 0.53 kg |
