SKU: USFTE205-SNR

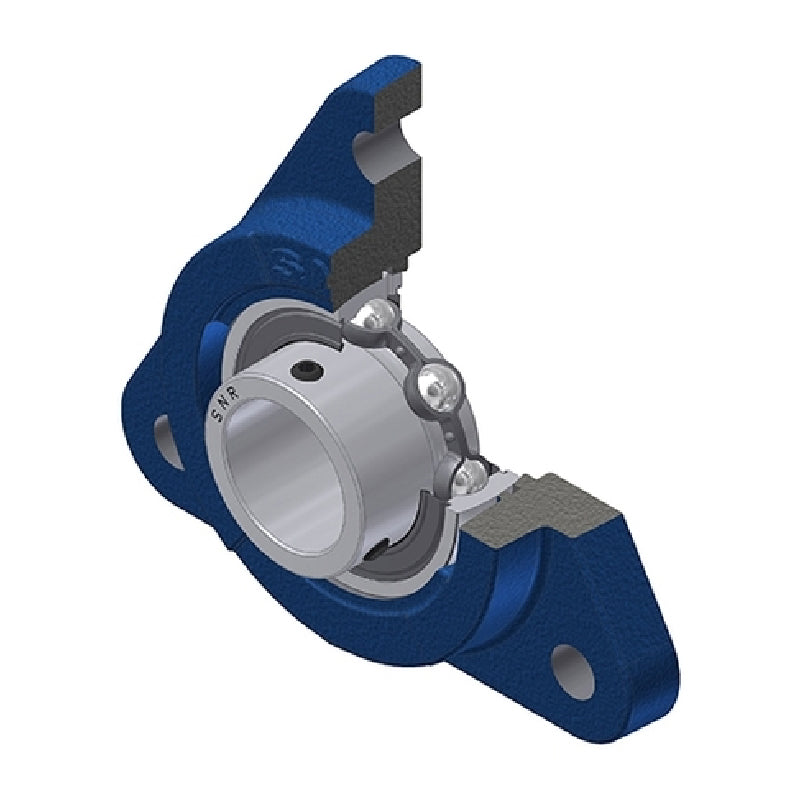

SNR USFTE205 Metric Three Bolt Cast Iron Triangular Housing with 25mm Bore Insert - Allow 2-3 Days
SNR USFTE205 Metric Three Bolt Cast Iron Triangular Housing with 25mm Bore Insert - Allow 2-3 Days
Regular price
$41.21
ex VAT
Regular price
Sale price
$41.21
ex VAT
In stock
Price Break
3+
$30.70
4+
$29.46
9+
$28.84
19+
$27.91
49+
$27.29
99+
$25.74
499+
$21.71
999+
$0.00
1999+
$0.00
2999+
$0.00
4999+
$0.00
Quantity
Couldn't load pickup availability
Share this product
Description
Description
USFTE200 Series 3 Bolt Cast Iron Triangular Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 25mm
- Style:
- USFTE
- Bolt Hole Centres:
- 96mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 25mm |
| A | 22mm |
| A1 | 12mm |
| A2 | 32.1mm |
| B | 27mm |
| e | 12.6mm |
| H | 97mm |
| H1 | 36mm |
| J | 96mm |
| N | 11mm |
| S | 7.5mm |
| G | R1/8″ |
| --- | Load rating |
| Dynamic load C | 14 kN |
| Static load C0 | 7.88 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 5.5 Nm |
| Mass | 0.57 kg |
