• SNR USFTE206 Metric Three Bolt Cast Iron Triangular Housing with 30mm Bore Insert
  • SNR
1 2

SKU: USFTE206-SNR

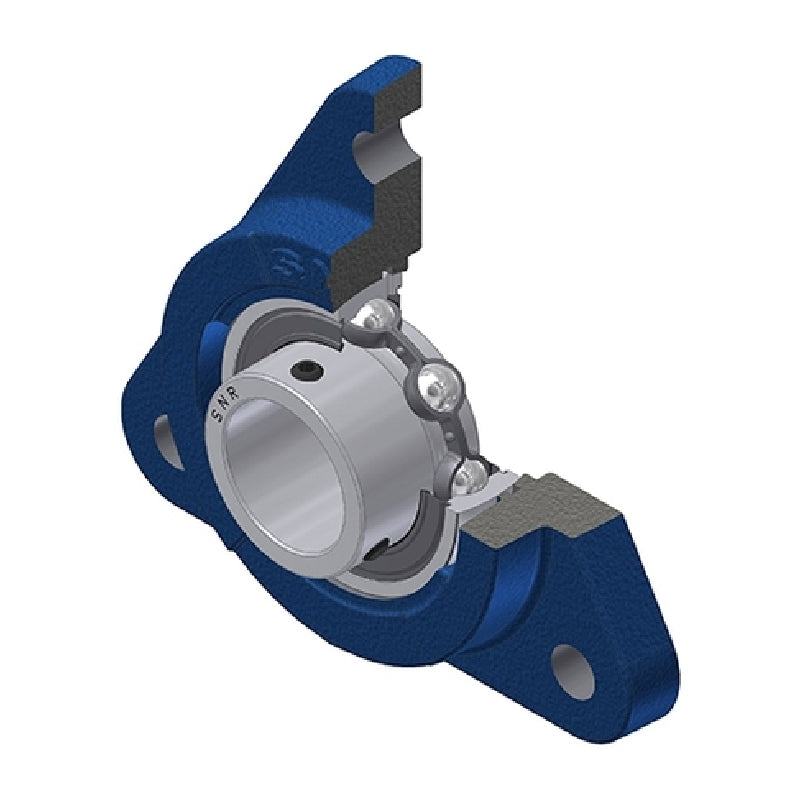

SNR USFTE206 Metric Three Bolt Cast Iron Triangular Housing with 30mm Bore Insert

SNR USFTE206 Metric Three Bolt Cast Iron Triangular Housing with 30mm Bore Insert
$40.57 ex VAT
$40.57 ex VAT
Sale Sold out

In stock

Price Break
3+ $27.17
4+ $25.64
9+ $25.34
19+ $25.03
49+ $24.73
99+ $24.42
499+ $22.90
999+ $22.59
1999+ $22.29
2999+ $21.98
4999+ $21.37

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Inside Diameter:
30mm
Style:
USFTE
Bolt Hole Centres:
116mm
Technical

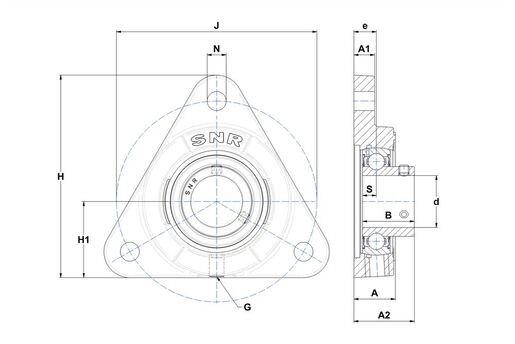

--- Dimensions
Shaft diameter d 30mm
A 24mm
A1 12mm
A2 35mm
B 30mm
e 13mm
H 117mm
H1 44mm
J 116mm
N 11mm
S 8mm
G R1/8″
--- Load rating
Dynamic load C 19.5 kN
Static load C0 11.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 5.5 Nm
Mass 1.07 kg
