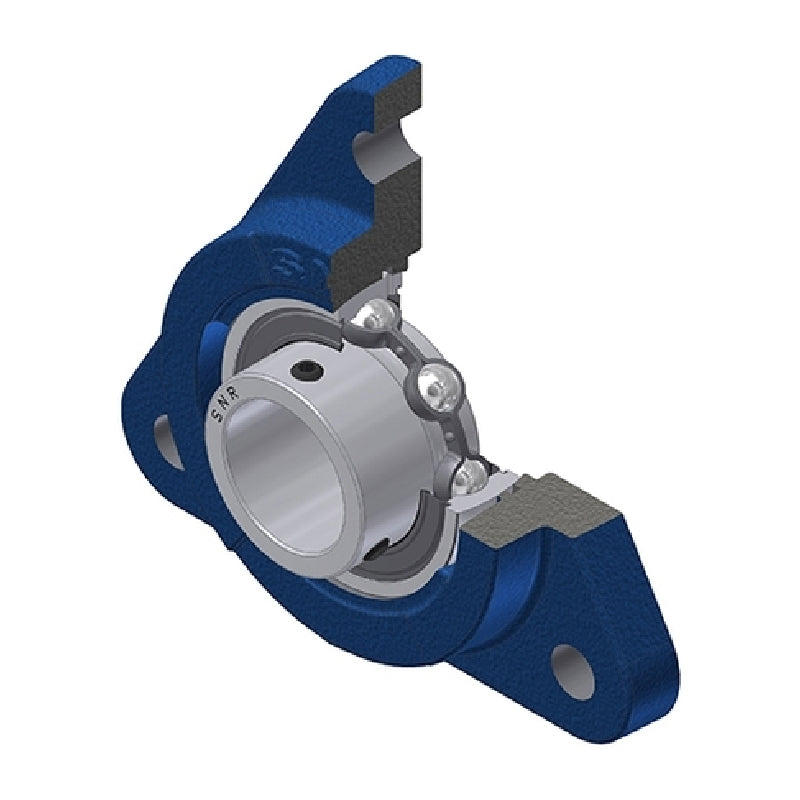

SNR USFTE208 Metric Three Bolt Cast Iron Triangular Housing with 40mm Bore Insert

Name: SNR USFTE208 Metric Three Bolt Cast Iron Triangular Housing with 40mm Bore Insert
Brand: SNR
SKU: USFTE208-SNR
Price: 51.23 USD
Availability: InStock

$51.23 ex VAT

Sale Sold out

In stock

Price Break

3+ $34.31

4+ $32.39

9+ $32.00

19+ $31.62

49+ $31.23

99+ $30.84

499+ $28.92

999+ $28.53

1999+ $28.15

2999+ $27.76

4999+ $26.99

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: SNR - High Quality
Inside Diameter:: 40mm
Style:: USFTE
Bolt Hole Centres:: 140mm

Technical

---	Dimensions
Shaft diameter d	40mm
A	30mm
A1	16mm
A2	43.8mm
B	34mm
e	18.8mm
H	153mm
H1	51mm
J	140mm
N	13.5mm
S	9mm
G	R1/8″
---	Load rating
Dynamic load C	29.6 kN
Static load C0	18.2 kN
---	Unit information
Operating temperature min.	-20°C
Operating temperature max.	100°C
Recommended tightening torque for set screw	11.5 Nm
Mass	2.29 kg
