SKU: USP204-SNR

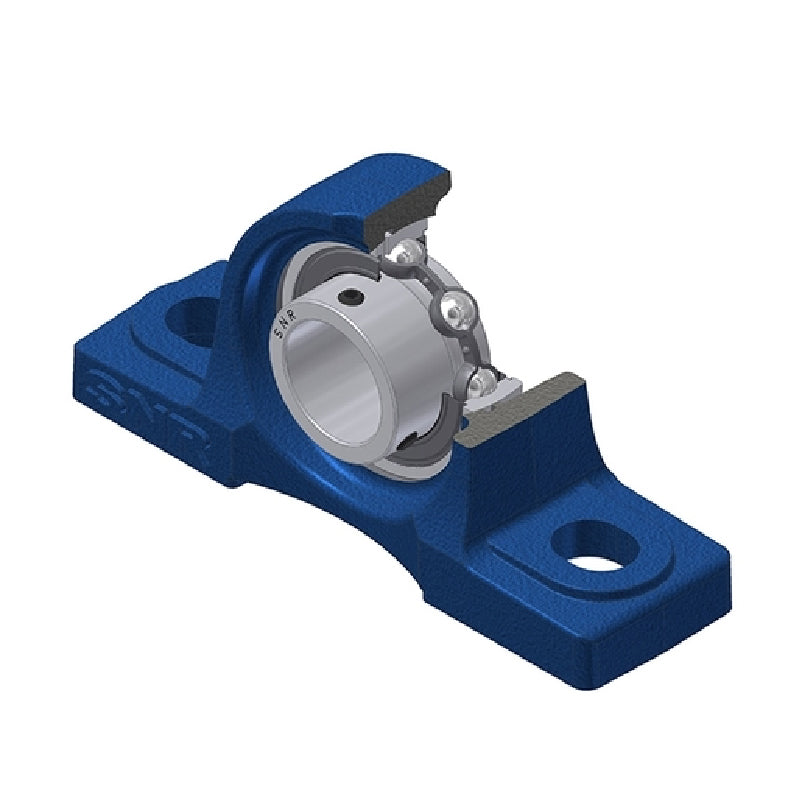

SNR USP204 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 20mm Bore Insert

Name: SNR USP204 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 20mm Bore Insert
Brand: SNR
SKU: USP204-SNR
Price: 26.19 USD
Availability: InStock

$26.19 ex VAT

Sale Sold out

In stock

Price Break

3+ $17.54

4+ $16.55

9+ $16.36

19+ $16.16

49+ $15.96

99+ $15.77

499+ $14.78

999+ $14.58

1999+ $14.39

2999+ $14.19

4999+ $13.79

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: SNR - High Quality
Inside Diameter:: 20mm
Style:: USP
Bolt Hole Centres:: 95mm

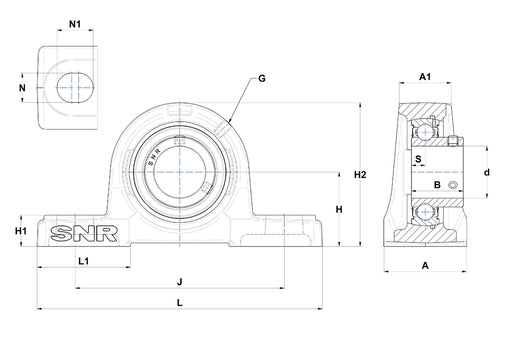

Technical

---	Dimensions
Shaft diameter d	20mm
A	38mm
A1	22mm
B	25mm
H	33.3mm
H1	15mm
H2	65mm
J	95mm
L	127mm
L1	42mm
N	13mm
N1	19mm
S	7mm
Grease fitting G	M6x1
---	Load rating
Dynamic load C	12.8 kN
Static load C0	6.65 kN
---	Unit information
Operating temperature min.	-20°C
Operating temperature max.	100°C
Recommended tightening torque for set screw	5.5 Nm
Mass	0.63 kg
