SKU: USP205-SNR

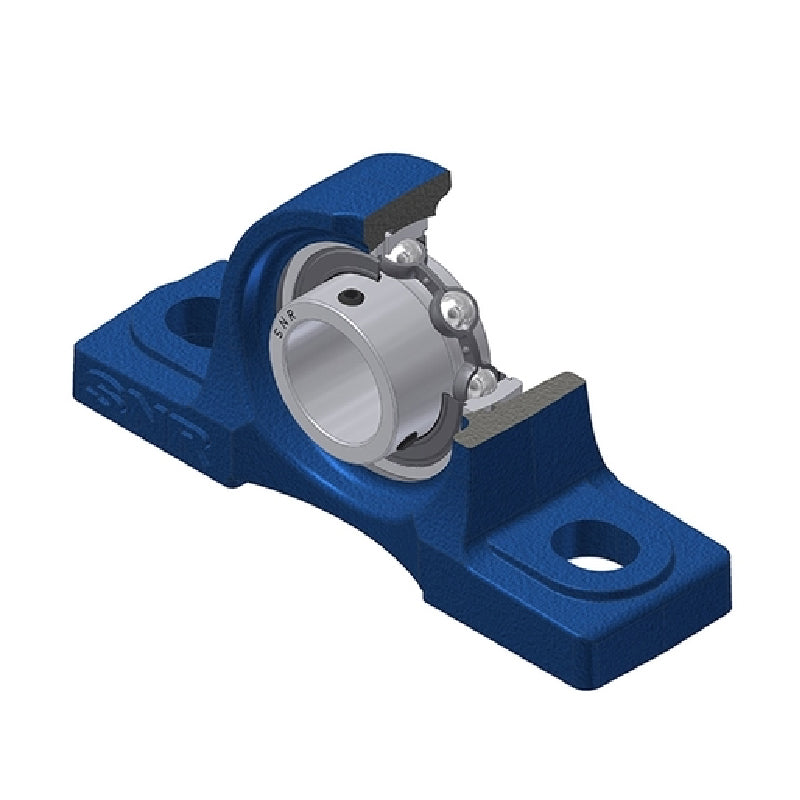

SNR USP205 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 25mm Bore Insert

Name: SNR USP205 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 25mm Bore Insert
Brand: SNR
SKU: USP205-SNR
Price: 29.46 USD
Availability: InStock

$29.46 ex VAT

Sale Sold out

In stock

Price Break

3+ $19.74

4+ $18.63

9+ $18.41

19+ $18.18

49+ $17.96

99+ $17.74

499+ $16.63

999+ $16.41

1999+ $16.19

2999+ $15.97

4999+ $15.52

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: SNR - High Quality
Inside Diameter:: 25mm
Style:: USP
Bolt Hole Centres:: 105mm

Technical

---	Dimensions
Shaft diameter d	25mm
A	38mm
A1	26mm
B	27mm
H	36.5mm
H1	16mm
H2	70mm
J	105mm
L	140mm
L1	42mm
N	13mm
N1	19mm
S	7.5mm
Grease fitting G	M6x1
---	Load rating
Dynamic load C	14 kN
Static load C0	7.88 kN
---	Unit information
Operating temperature min.	-20°C
Operating temperature max.	100°C
Recommended tightening torque for set screw	5.5 Nm
Mass	0.77 kg
