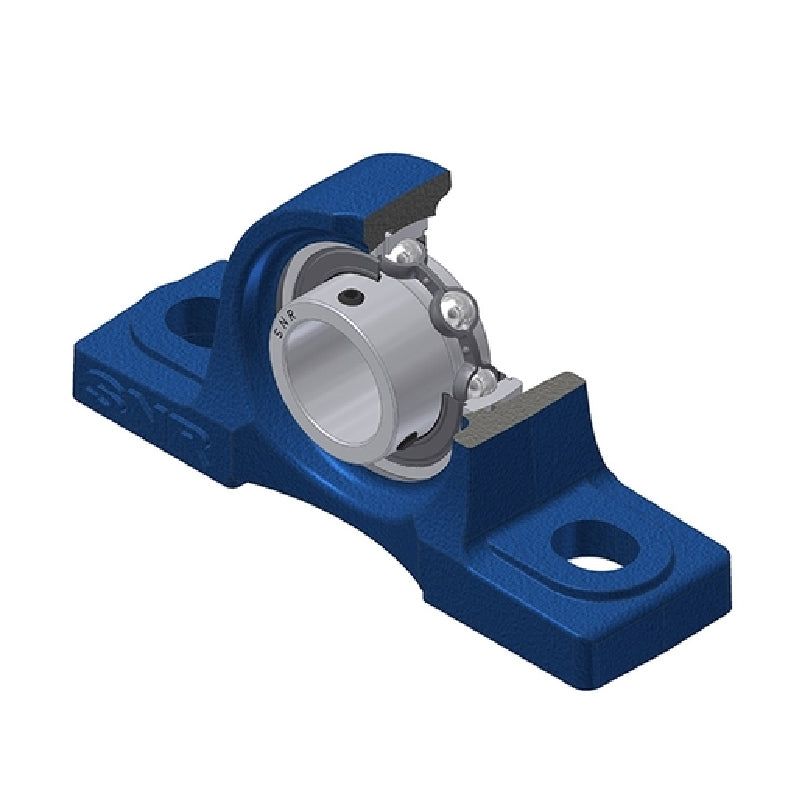

• SNR USP208-24 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 1-1/2 inch Bore Insert
  • SNR
1 2

SKU: USP208-24-SNR

SNR USP208-24 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 1-1/2 inch Bore Insert

SNR USP208-24 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 1-1/2 inch Bore Insert
$40.57 ex VAT
$40.57 ex VAT
Sale Sold out

In stock

Price Break
3+ $27.17
4+ $25.64
9+ $25.34
19+ $25.03
49+ $24.73
99+ $24.42
499+ $22.90
999+ $22.59
1999+ $22.29
2999+ $21.98
4999+ $21.37

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Inside Diameter:
38.1mm = 1.5 (1-1/2) inch
Style:
USP
Bolt Hole Centres:
137mm
Technical
--- Dimensions
Shaft diameter d 1-1/2 inch
A 54mm
A1 34mm
B 34mm
H 49.2mm
H1 19mm
H2 100mm
J 137mm
L 184mm
L1 52mm
N 17mm
N1 23mm
S 9mm
Grease fitting G M6x1
--- Load rating
Dynamic load C 29.6 kN
Static load C0 18.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 8 Nm
Mass 2.1 kg
