SKU: USP212CC-SNR

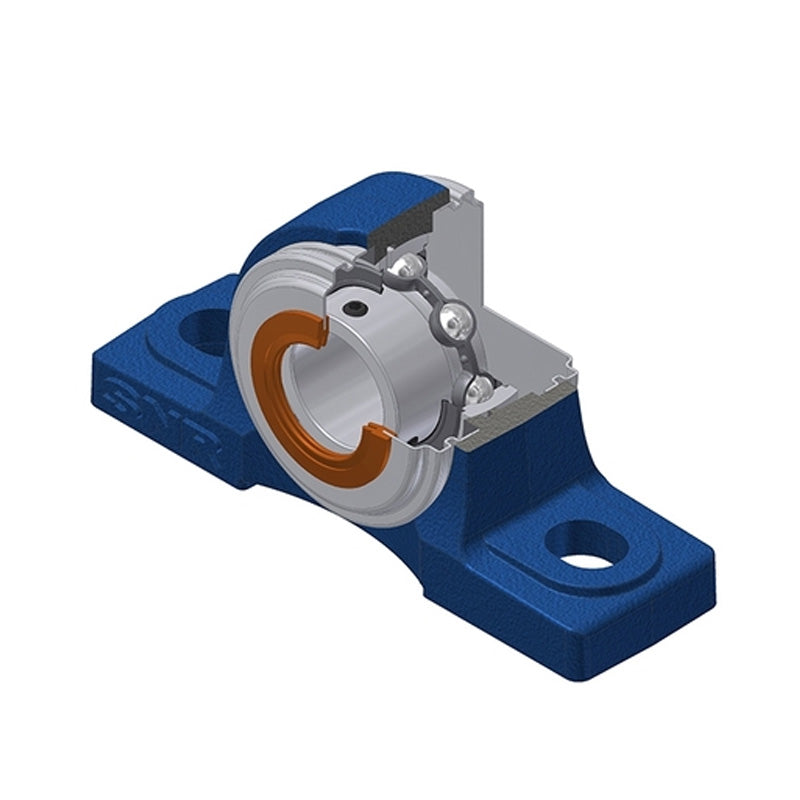

SNR USP212CC Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 60mm Bore Insert with Narrow Steel Plate Cover - Closed Version - Allow 2-3 Days

SNR USP212CC Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 60mm Bore Insert with Narrow Steel Plate Cover - Closed Version - Allow 2-3 Days
Regular price $176.57 ex VAT
Regular price Sale price $176.57 ex VAT
Sale Sold out

In stock

Price Break
3+ $131.54
4+ $126.23
9+ $123.57
19+ $119.58
49+ $116.93
99+ $110.28
499+ $93.01
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical

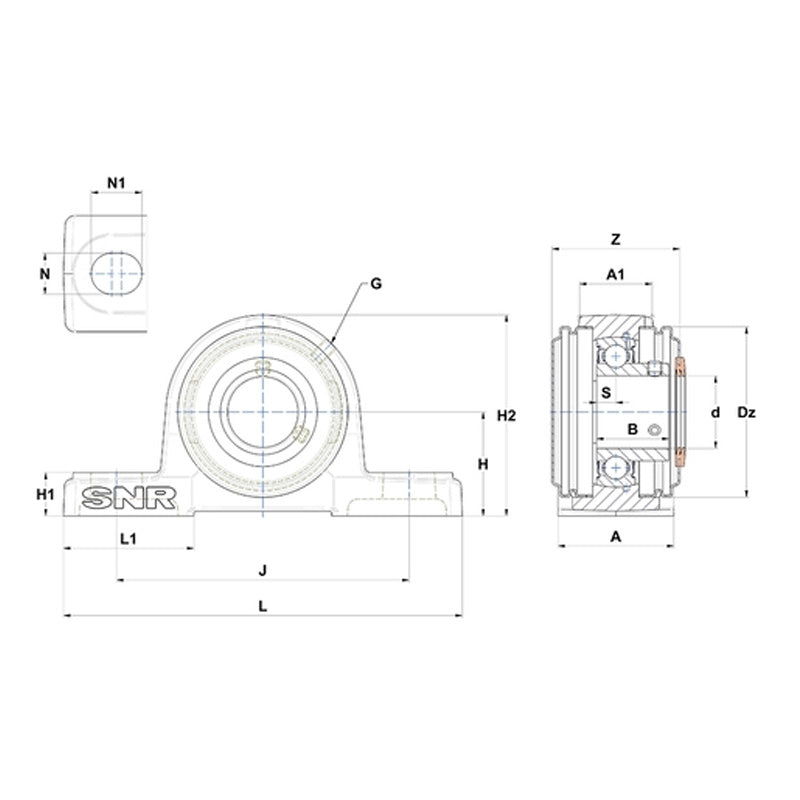

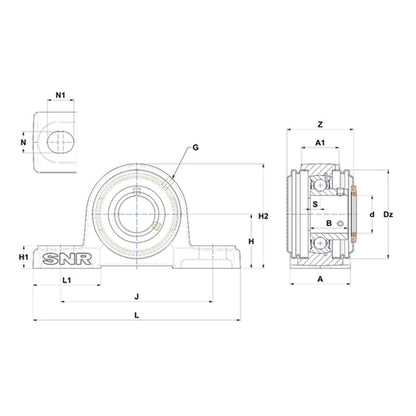

--- Dimensions
Shaft diameter d 60mm
A 70mm
A1 44mm
B 53.7mm
H 69.8mm
H1 25mm
H2 138mm
J 184mm
L 241mm
L1 70mm
N 20mm
N1 25mm
S 14.9mm
Dz 120mm
Z 90mm
Grease fitting G M6x1
--- Load rating
Dynamic load C 52.5 kN
Static load C0 32.8 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 22 Nm
Mass 5.03 kg
