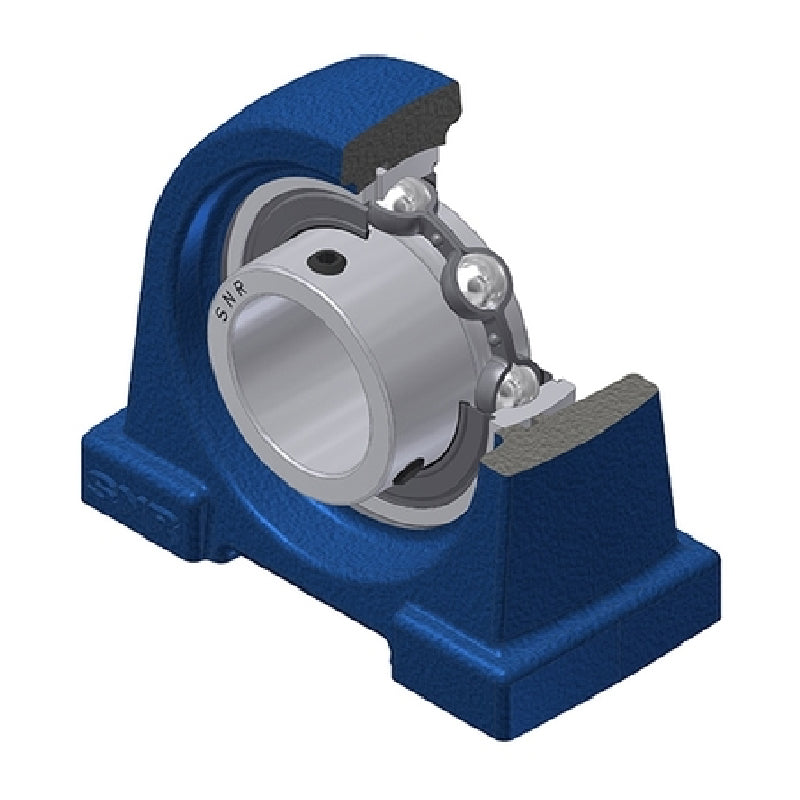

SNR USPA205 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 25mm Bore Insert - Allow 2-3 Days
SNR USPA205 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 25mm Bore Insert - Allow 2-3 Days
Regular price
$41.21
ex VAT
Regular price
Sale price
$41.21
ex VAT
In stock
Price Break
3+
$30.70
4+
$29.46
9+
$28.84
19+
$27.91
49+
$27.29
99+
$25.74
499+
$21.71
999+
$0.00
1999+
$0.00
2999+
$0.00
4999+
$0.00
Quantity
Couldn't load pickup availability
Description
Description
|
USPA200 Series Cast Iron Small Footprint Pillow Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the threaded base housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required. Benefits: Cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing, small footprint |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 25mm
- Style:
- USPA
- Bolt Hole Centres:
- 56mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 25mm |
| A | 38mm |
| A1 | 23mm |
| B | 27mm |
| E | 15mm |
| H | 36.5mm |
| H1 | 12mm |
| H2 | 72mm |
| J | 56mm |
| L | 84mm |
| L1 | 27mm |
| N | M10 |
| S | 7.5mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 14 kN |
| Static load C0 | 7.88 kN |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| --- | Unit information |
| Recommended tightening torque for set screw | 5.5 Nm |
| Mass | 0.67 kg |
