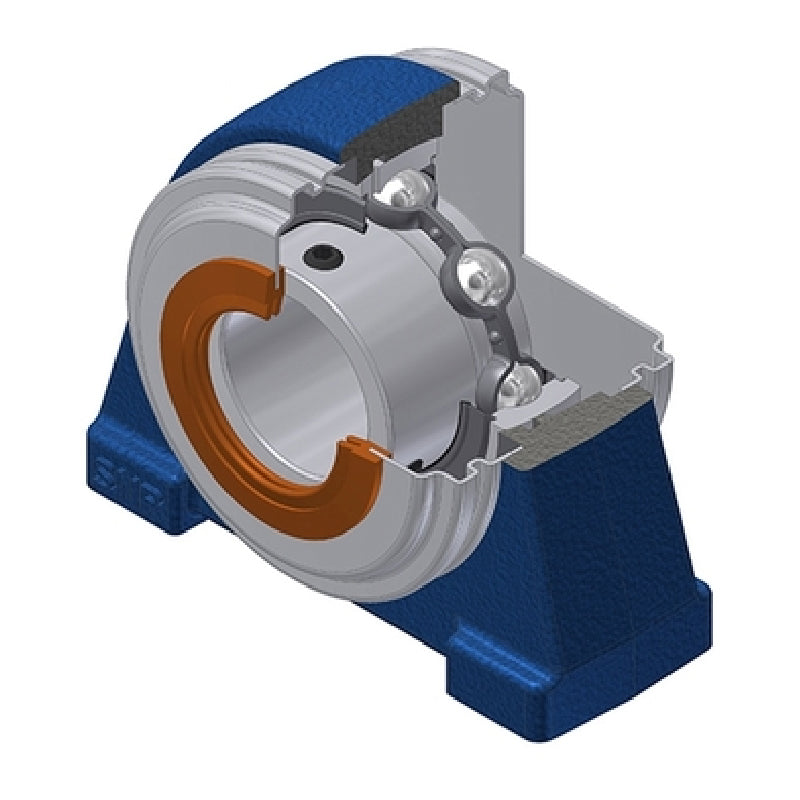

• SNR USPAE201CO Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 12mm Bore Insert with Narrow Steel Plate Cover - Open Version - Allow 2-3 Days
1 1

SKU: USPAE201CO-SNR

SNR USPAE201CO Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 12mm Bore Insert with Narrow Steel Plate Cover - Open Version - Allow 2-3 Days

SNR USPAE201CO Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 12mm Bore Insert with Narrow Steel Plate Cover - Open Version - Allow 2-3 Days
$132.60 ex VAT
$132.60 ex VAT
Sale Sold out

In stock

Price Break
3+ $98.78
4+ $94.79
9+ $92.80
19+ $89.80
49+ $87.81
99+ $82.82
499+ $69.85
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
USPAE200 Series Cast Iron Small Footprint Pillow Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the threaded base housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: Cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing, small footprint
Brand / Quality:
SNR - High Quality
Inside Diameter:
12mm
Style:
USPAE
Bolt Hole Centres:
47mm
Technical
--- Dimensions
Shaft diameter 12mm
A 30mm
A1 18mm
B 22mm
E 10mm
H 30.2mm
H1 9mm
H2 57mm
J 47mm
L 63mm
L1 17.5mm
N M8
S 6mm
Dz 46mm
Z 44.5mm
G M6x1
--- Load rating
Dynamic load C 9.55 kN
Static load C0 4.78 kN
Operating temperature min. -20°C
Operating temperature max. 100°C
--- Unit information
Recommended tightening torque for set screw 3.5 Nm
Mass 0.438 kg
