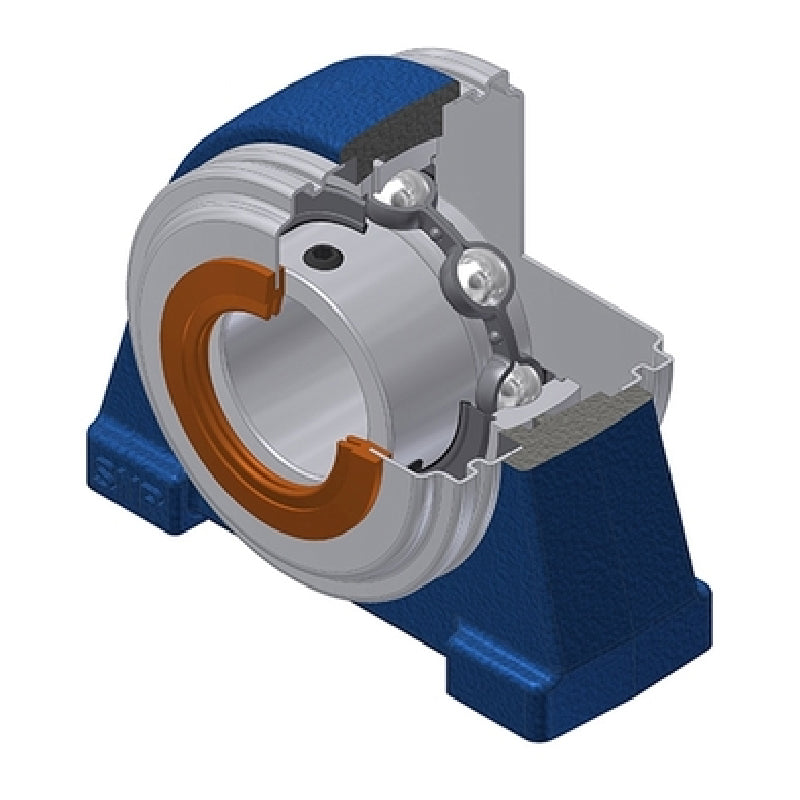

• SNR USPAE204CO Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 20mm Bore Insert with Narrow Steel Plate Cover - Open Version - Allow 2-3 Days
1 1

SKU: USPAE204CO-SNR

SNR USPAE204CO Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 20mm Bore Insert with Narrow Steel Plate Cover - Open Version - Allow 2-3 Days

SNR USPAE204CO Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 20mm Bore Insert with Narrow Steel Plate Cover - Open Version - Allow 2-3 Days
$103.04 ex VAT
$103.04 ex VAT
Sale Sold out

In stock

Price Break
3+ $76.76
4+ $73.66
9+ $72.11
19+ $69.79
49+ $68.24
99+ $64.36
499+ $54.28
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
USPAE200 Series Cast Iron Small Footprint Pillow Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the threaded base housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: Cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing, small footprint
Brand / Quality:
SNR - High Quality
Inside Diameter:
20mm
Style:
USPAE
Bolt Hole Centres:
50.8mm
Technical
--- Dimensions
Shaft diameter 20mm
A 32mm
A1 19mm
B 25mm
E 10mm
H 33.3mm
H1 9mm
H2 64mm
J 50.8mm
L 65mm
L1 18mm
N M8
S 7mm
Dz 54mm
Z 44.5mm
G R1/8″
--- Load rating
Dynamic load C 12.8 kN
Static load C0 6.65 kN
Operating temperature min. -20°C
Operating temperature max. 100°C
--- Unit information
Recommended tightening torque for set screw 5.5 Nm
Mass 0.488 kg
