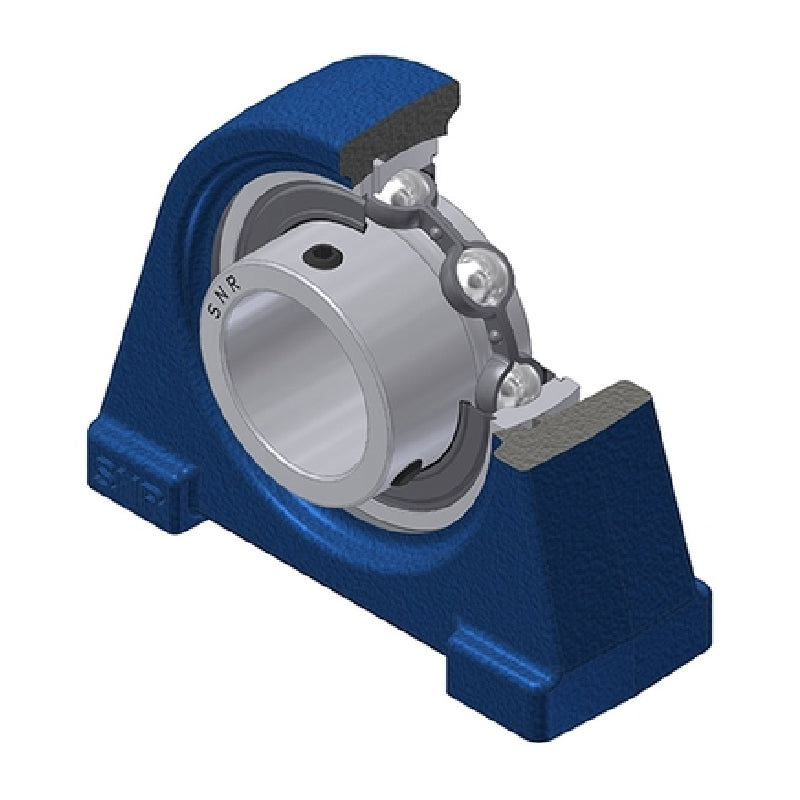

• SNR USPAE206 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 30mm Bore Insert - Allow 2-3 Days
  • SNR
1 2

SKU: USPAE206-SNR

SNR USPAE206 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 30mm Bore Insert - Allow 2-3 Days

SNR USPAE206 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 30mm Bore Insert - Allow 2-3 Days
$39.85 ex VAT
$39.85 ex VAT
Sale Sold out

In stock

Price Break
3+ $26.69
4+ $25.19
9+ $24.89
19+ $24.59
49+ $24.29
99+ $23.99
499+ $22.49
999+ $22.19
1999+ $21.89
2999+ $21.59
4999+ $20.99

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Inside Diameter:
30mm
Style:
USPAE
Bolt Hole Centres:
76.2mm
Technical

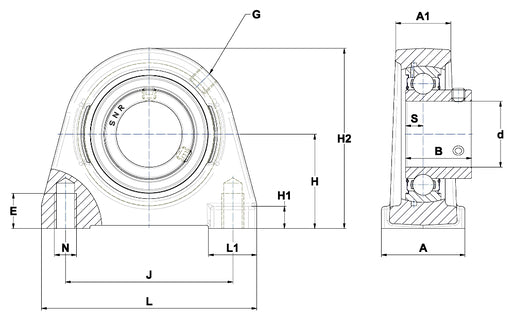

--- Dimensions
Shaft diameter 30mm
A 38mm
A1 25mm
B 30mm
E 12.5mm
H 42.9mm
H1 11mm
H2 82mm
J 76.2mm
L 98mm
L1 22mm
N M10
S 8mm
G R1/8″
--- Load rating
Dynamic load C 19.5 kN
Static load C0 11.2 kN
Operating temperature min. -20°C
Operating temperature max. 100°C
--- Unit information
Recommended tightening torque for set screw 5.5 Nm
Mass 0.87 kg
