SKU: USPAE208-SNR

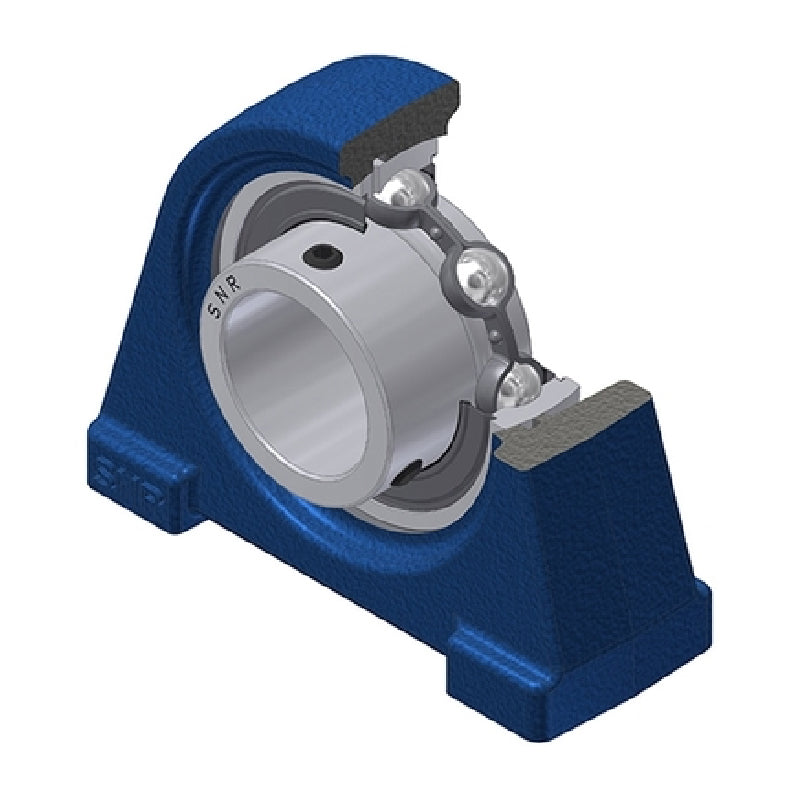

SNR USPAE208 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 40mm Bore Insert

Name: SNR USPAE208 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 40mm Bore Insert
Brand: SNR
SKU: USPAE208-SNR
Price: 48.67 USD
Availability: InStock

$48.67 ex VAT

Sale Sold out

In stock

Price Break

3+ $32.60

4+ $30.77

9+ $30.40

19+ $30.04

49+ $29.67

99+ $29.30

499+ $27.47

999+ $27.10

1999+ $26.74

2999+ $26.37

4999+ $25.64

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: SNR - High Quality
Inside Diameter:: 40mm
Style:: USPAE
Bolt Hole Centres:: 88.9mm

Technical

---	Dimensions
Shaft diameter	40mm
A	47mm
A1	30mm
B	34mm
E	15mm
H	49.2mm
H1	13mm
H2	99mm
J	88.9mm
L	116mm
L1	27mm
N	M12
S	9mm
G	R1/8″
---	Load rating
Dynamic load C	29.6 kN
Static load C0	18.2 kN
Operating temperature min.	-20°C
Operating temperature max.	100°C
---	Unit information
Recommended tightening torque for set screw	11.5 Nm
Mass	1.6 kg
