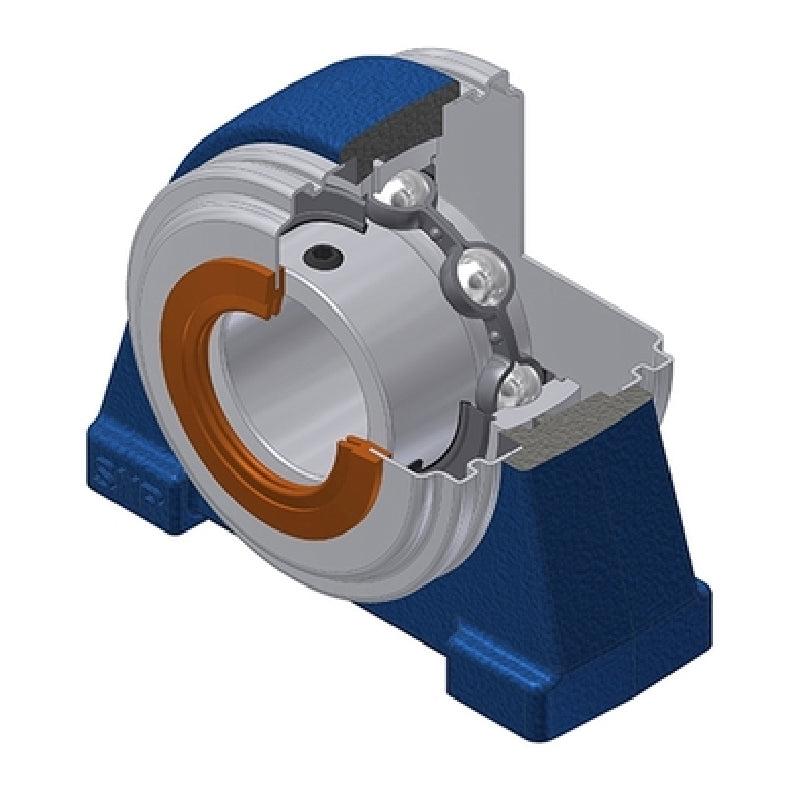

• SNR USPAE209CC Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 45mm Bore Insert with Narrow Steel Plate Cover - Closed Version - Allow 2-3 Days
1 1

SKU: USPAE209CC-SNR

SNR USPAE209CC Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 45mm Bore Insert with Narrow Steel Plate Cover - Closed Version - Allow 2-3 Days

SNR USPAE209CC Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 45mm Bore Insert with Narrow Steel Plate Cover - Closed Version - Allow 2-3 Days
$117.83 ex VAT
$117.83 ex VAT
Sale Sold out

In stock

Price Break
3+ $87.78
4+ $84.24
9+ $82.46
19+ $79.80
49+ $78.03
99+ $73.60
499+ $62.07
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
USPAE200 Series Cast Iron Small Footprint Pillow Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the threaded base housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: Cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing, small footprint
Brand / Quality:
SNR - High Quality
Inside Diameter:
45mm
Style:
USPAE
Bolt Hole Centres:
95.3mm
Technical
--- Dimensions
Shaft diameter 45mm
A 48mm
A1 32mm
B 41.2mm
E 15mm
H 53.9mm
H1 14mm
H2 107mm
J 95.3mm
L 120mm
L1 29mm
N M12
S 10.2mm
Dz 95mm
Z 70.3mm
G R1/8″
--- Load rating
Dynamic load C 31.85 kN
Static load C0 20.8 kN
Operating temperature min. -20°C
Operating temperature max. 100°C
--- Unit information
Recommended tightening torque for set screw 11.5 Nm
Mass 1.919 kg
