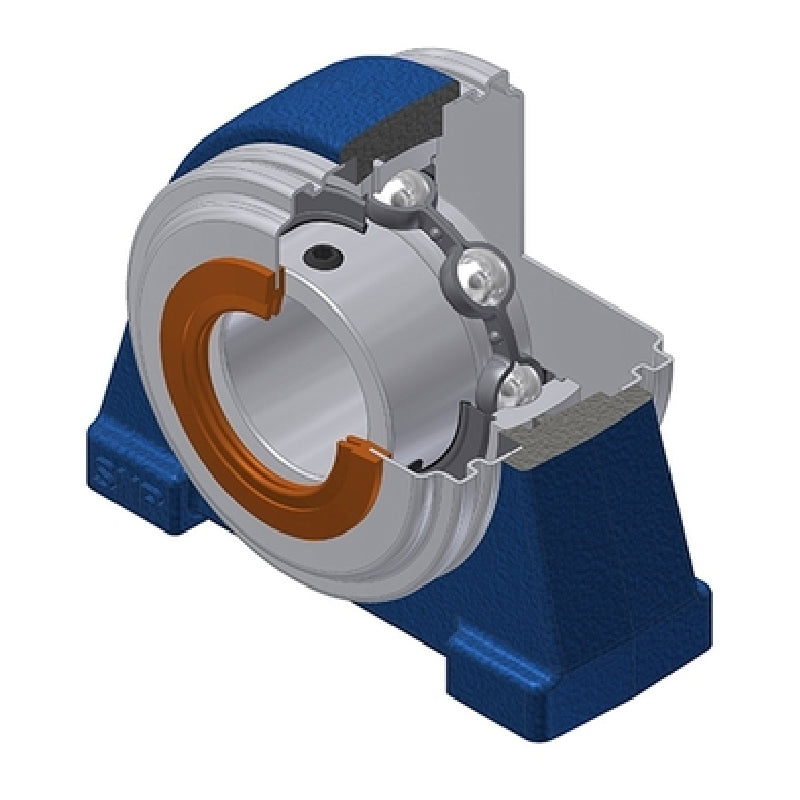

• SNR USPAE211CC Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 55mm Bore Insert with Narrow Steel Plate Cover - Closed Version - Allow 2-3 Days
1 1

SKU: USPAE211CC-SNR

SNR USPAE211CC Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 55mm Bore Insert with Narrow Steel Plate Cover - Closed Version - Allow 2-3 Days

SNR USPAE211CC Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 55mm Bore Insert with Narrow Steel Plate Cover - Closed Version - Allow 2-3 Days
$117.85 ex VAT
$117.85 ex VAT
Sale Sold out

In stock

Price Break
3+ $87.79
4+ $84.25
9+ $82.47
19+ $79.81
49+ $78.04
99+ $73.60
499+ $62.08
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
USPAE200 Series Cast Iron Small Footprint Pillow Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the threaded base housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: Cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing, small footprint
Brand / Quality:
SNR - High Quality
Inside Diameter:
55mm
Style:
USPAE
Bolt Hole Centres:
118mm
Technical
--- Dimensions
Shaft diameter 55mm
A 60mm
A1 35mm
B 45.3mm
E 20mm
H 64mm
H1 16mm
H2 125mm
J 118mm
L 150mm
L1 32mm
N M16
S 11.8mm
Dz 110mm
Z 77.7mm
G R1/8″
--- Load rating
Dynamic load C 43.55 kN
Static load C0 29.2 kN
Operating temperature min. -20°C
Operating temperature max. 100°C
--- Unit information
Recommended tightening torque for set screw 22 Nm
Mass 3.232 kg
