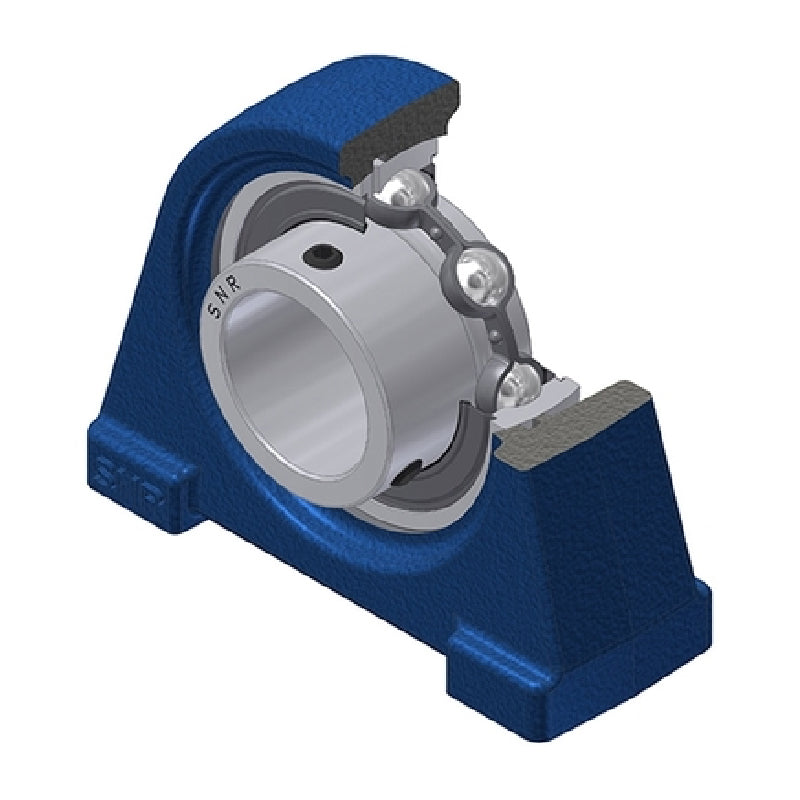

• SNR USPAE212 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 60mm Bore Insert
  • SNR
1 2

SKU: USPAE212-SNR

SNR USPAE212 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 60mm Bore Insert

SNR USPAE212 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 60mm Bore Insert
$88.23 ex VAT
$88.23 ex VAT
Sale Sold out

In stock

Price Break
3+ $59.10
4+ $55.78
9+ $55.11
19+ $54.45
49+ $53.79
99+ $53.12
499+ $49.80
999+ $49.14
1999+ $48.47
2999+ $47.81
4999+ $46.48

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Inside Diameter:
60mm
Style:
USPAE
Bolt Hole Centres:
118mm
Technical
--- Dimensions
Shaft diameter 60mm
A 60mm
A1 42mm
B 53.7mm
E 20mm
H 69.9mm
H1 16mm
H2 140mm
J 118mm
L 150mm
L1 32mm
N M16
S 14.9mm
G R1/8″
--- Load rating
Dynamic load C 52.5 kN
Static load C0 32.8 kN
Operating temperature min. -20°C
Operating temperature max. 100°C
--- Unit information
Recommended tightening torque for set screw 22 Nm
Mass 4 kg
Reviews
View full details
