SKU: USPE206CO-SNR

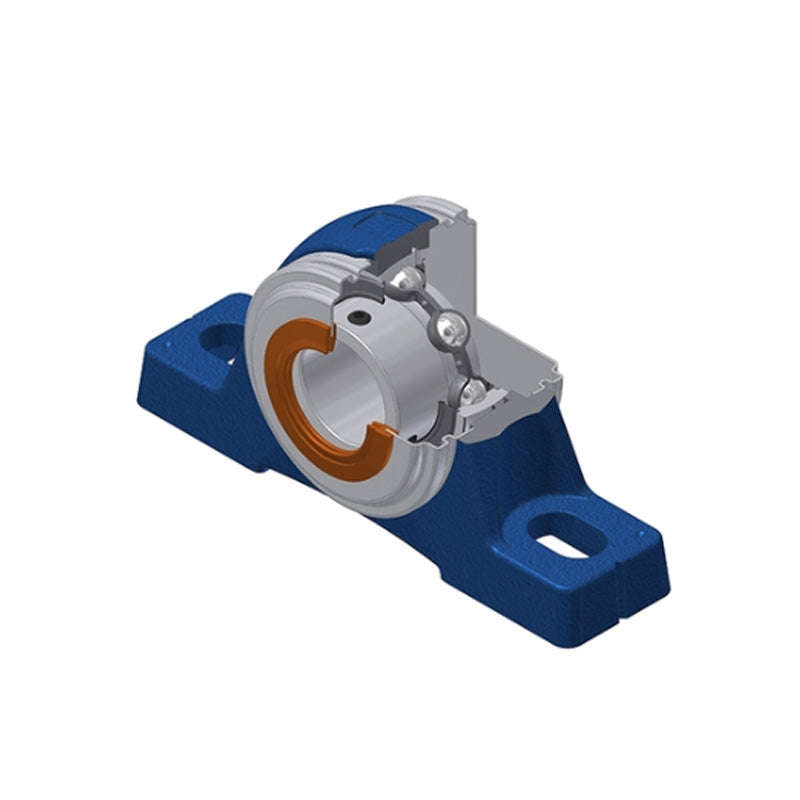

SNR USPE206CO Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 30mm Bore Insert with Narrow Steel Plate Cover - Open Version - Allow 2-3 Days
SNR USPE206CO Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 30mm Bore Insert with Narrow Steel Plate Cover - Open Version - Allow 2-3 Days
Regular price
$103.03
ex VAT
Regular price
Sale price
$103.03
ex VAT
In stock
Price Break
3+
$76.75
4+
$73.65
9+
$72.10
19+
$69.78
49+
$68.23
99+
$64.35
499+
$54.27
999+
$0.00
1999+
$0.00
2999+
$0.00
4999+
$0.00
Quantity
Couldn't load pickup availability
Share this product
Description
Description
USPE200 Series 2 Bolt Cast Iron Pillow Block Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 30mm
- Style:
- USPE
- Bolt Hole Centres:
- 118mm
Technical
Technical

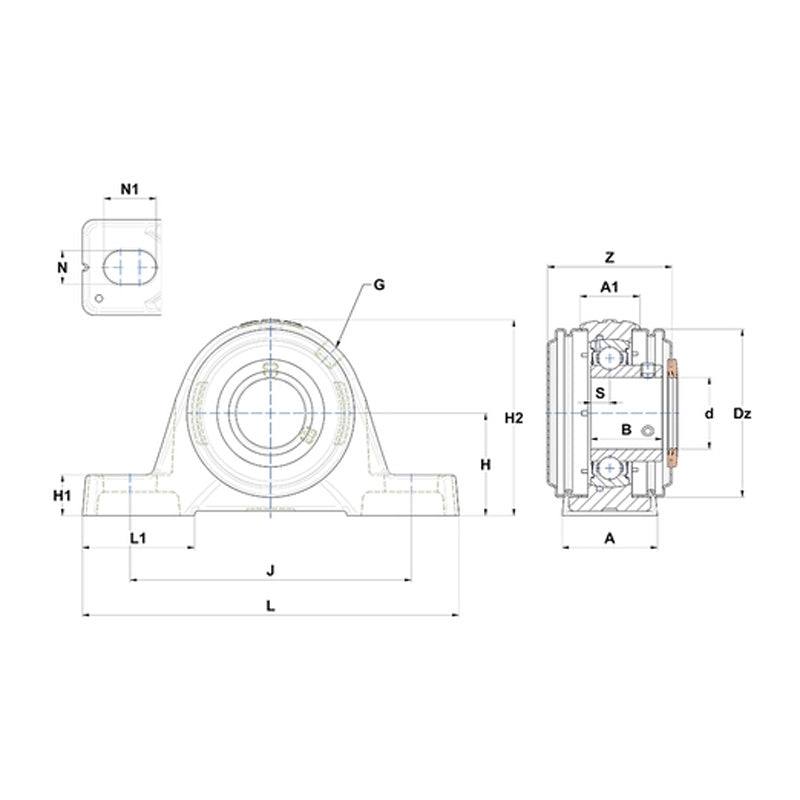

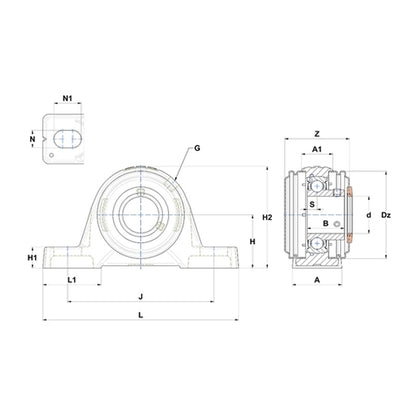

| --- | Dimensions |
|---|---|
| Shaft diameter | 30mm |
| A | 40mm |
| A1 | 25mm |
| B | 30mm |
| H | 42.9mm |
| H1 | 17mm |
| H2 | 82mm |
| J | 118mm |
| L | 158mm |
| L1 | 47mm |
| N | 14mm |
| N1 | 22mm |
| S | 8mm |
| Dz | 70mm |
| Z | 52.3mm |
| G | R1/8″ |
| --- | Load rating |
| Dynamic load C | 19.5 kN |
| Static load C0 | 11.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 5.5 Nm |
| Mass | 1.158 kg |
