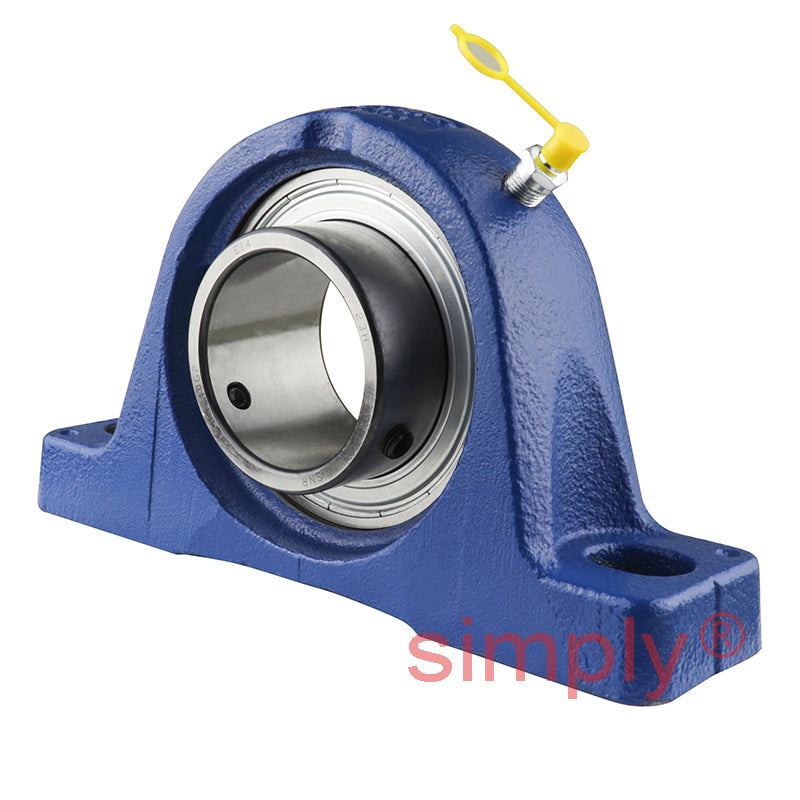

• SNR USPE207 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 35mm Bore Insert - Allow 2-3 Days
  • SNR
1 2

SKU: USPE207-SNR

SNR USPE207 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 35mm Bore Insert - Allow 2-3 Days

SNR USPE207 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 35mm Bore Insert - Allow 2-3 Days
$37.00 ex VAT
$37.00 ex VAT
Sale Sold out

In stock

Price Break
3+ $24.78
4+ $23.39
9+ $23.11
19+ $22.83
49+ $22.56
99+ $22.28
499+ $20.88
999+ $20.61
1999+ $20.33
2999+ $20.05
4999+ $19.49

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Inside Diameter:
35mm
Style:
USPE
Bolt Hole Centres:
126mm
Technical
--- Dimensions
Shaft diameter 35mm
A 45mm
A1 27mm
B 32mm
H 47.6mm
H1 19mm
H2 93mm
J 126mm
L 163mm
L1 49mm
N 14mm
N1 21mm
S 8.5mm
G R1/8″
--- Load rating
Dynamic load C 25.7 kN
Static load C0 15.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 5.5 Nm
Mass 1.52 kg
