SKU: USPE208CO-SNR

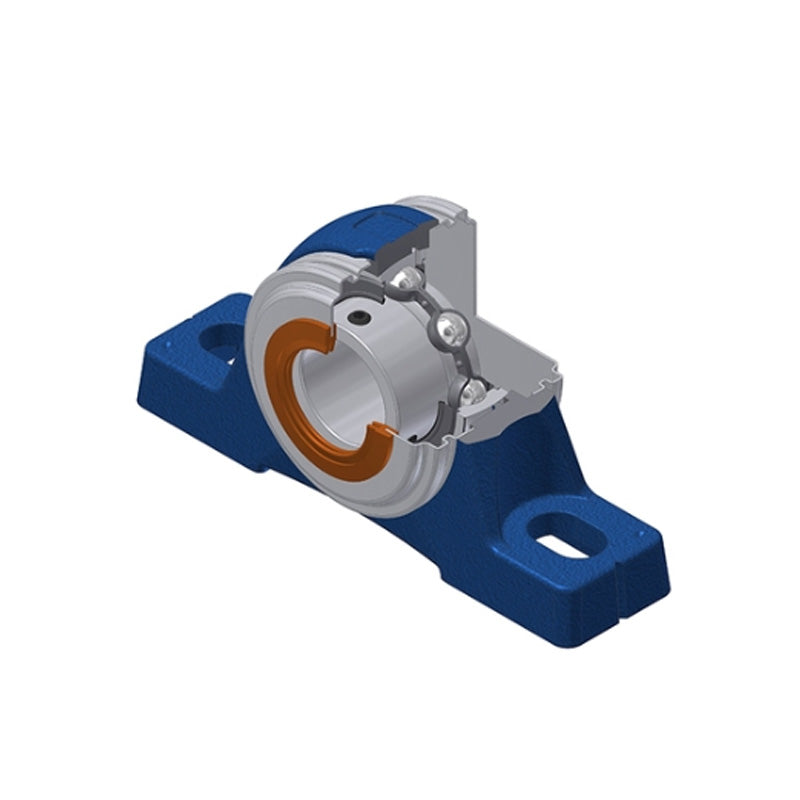

SNR USPE208CO Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 40mm Bore Insert with Narrow Steel Plate Cover - Open Version - Allow 2-3 Days

SNR USPE208CO Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 40mm Bore Insert with Narrow Steel Plate Cover - Open Version - Allow 2-3 Days
Regular price $117.74 ex VAT
Regular price Sale price $117.74 ex VAT
Sale Sold out

In stock

Price Break
3+ $87.71
4+ $84.17
9+ $82.40
19+ $79.74
49+ $77.97
99+ $73.54
499+ $62.02
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical

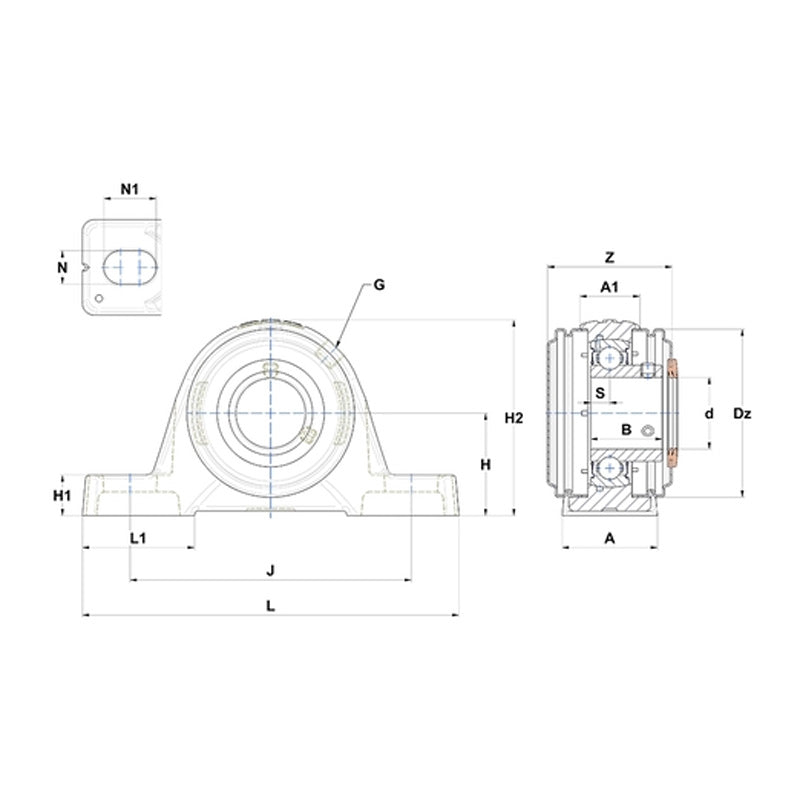

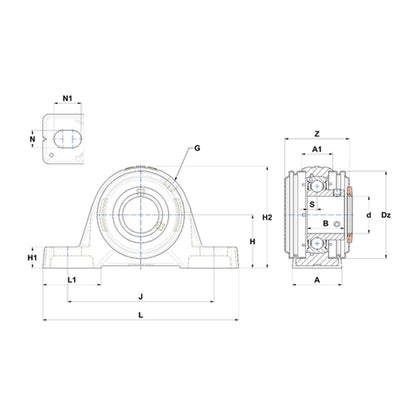

--- Dimensions
Shaft diameter 40mm
A 48mm
A1 30mm
B 34mm
H 49.2mm
H1 19mm
H2 99mm
J 138mm
L 179mm
L1 53mm
N 14mm
N1 26mm
S 9mm
Dz 88mm
Z 69.3mm
G R1/8″
--- Load rating
Dynamic load C 29.6 kN
Static load C0 18.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 11.5 Nm
Mass 1.944 kg
