SKU: USPE210-31-SNR

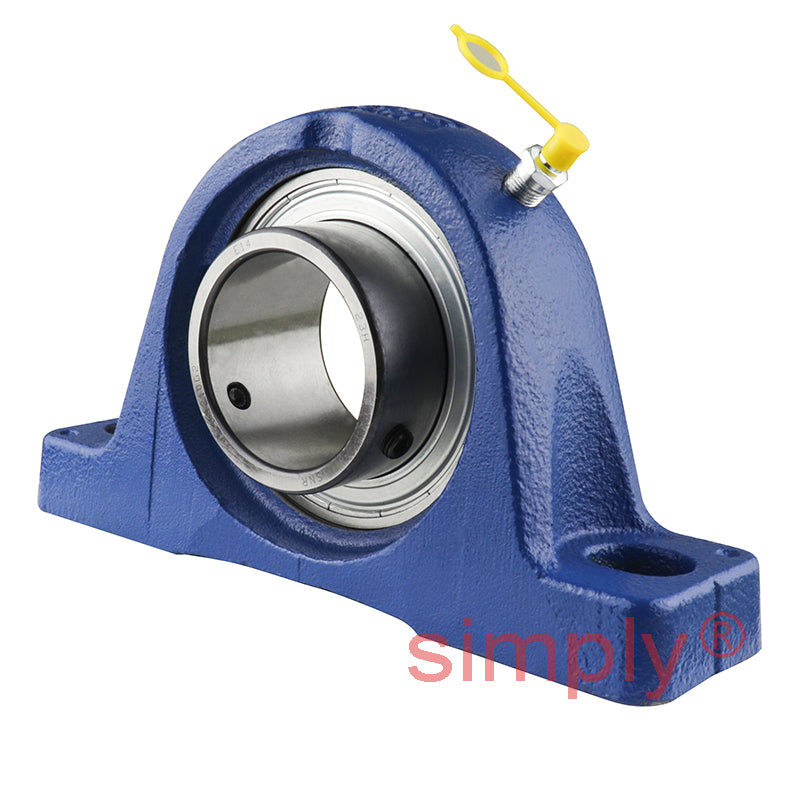

SNR USPE210-31 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 1-15/16 inch Bore Insert - Allow 2-3 Days

SNR USPE210-31 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 1-15/16 inch Bore Insert - Allow 2-3 Days
Regular price $73.53 ex VAT
Regular price Sale price $73.53 ex VAT
Sale Sold out

In stock

Price Break
3+ $54.78
4+ $52.56
9+ $51.46
19+ $49.80
49+ $48.69
99+ $45.92
499+ $38.73
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter 1-15/16 inch
A 54mm
A1 34mm
B 43.5mm
H 57.2mm
H1 21.5mm
H2 115mm
J 158mm
L 200mm
L1 61mm
N 18mm
N1 23mm
S 10.9mm
G R1/8″
--- Load rating
Dynamic load C 35.1 kN
Static load C0 23.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 8 Nm
Mass 2.58 kg
