SKU: USPE210-SNR

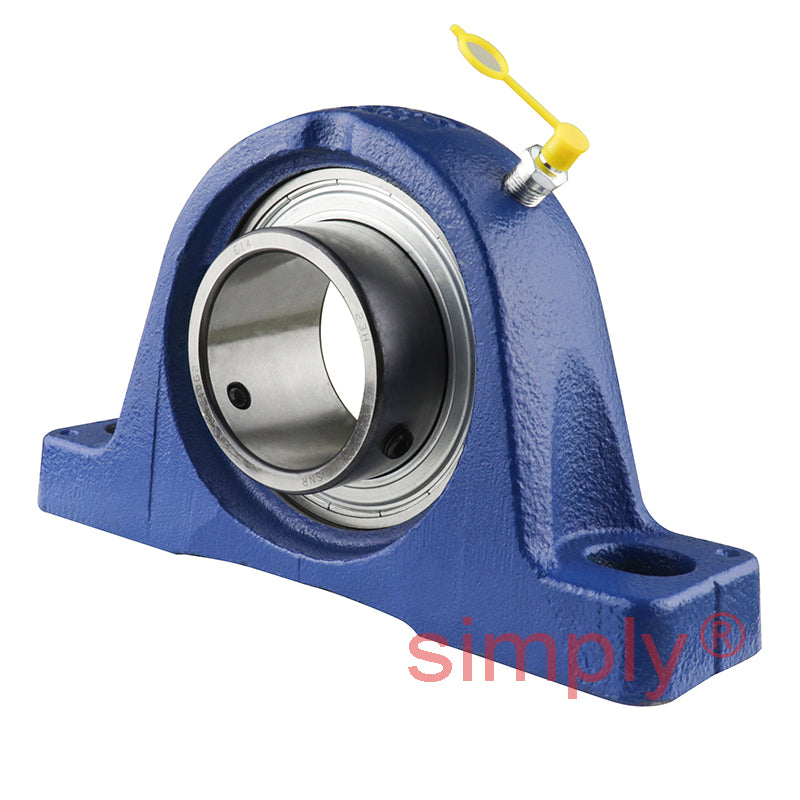

SNR USPE210 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 50mm Bore Insert

Name: SNR USPE210 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 50mm Bore Insert
Brand: SNR
SKU: USPE210-SNR
Price: 51.23 USD
Availability: InStock

$51.23 ex VAT

Sale Sold out

In stock

Price Break

3+ $34.31

4+ $32.39

9+ $32.00

19+ $31.62

49+ $31.23

99+ $30.84

499+ $28.92

999+ $28.53

1999+ $28.15

2999+ $27.76

4999+ $26.99

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: SNR - High Quality
Inside Diameter:: 50mm
Style:: USPE
Bolt Hole Centres:: 158mm

Technical

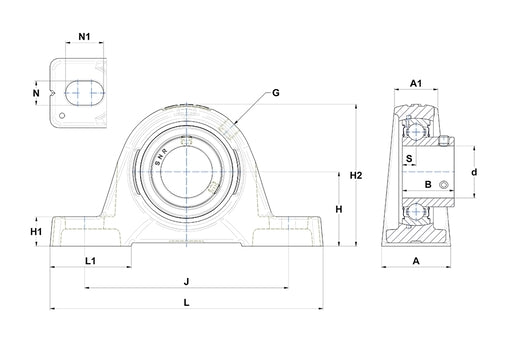

---	Dimensions
Shaft diameter	50mm
A	54mm
A1	34mm
B	43.5mm
H	57.2mm
H1	21.5mm
H2	115mm
J	158mm
L	200mm
L1	61mm
N	18mm
N1	23mm
S	10.9mm
G	R1/8″
---	Load rating
Dynamic load C	35.1 kN
Static load C0	23.2 kN
---	Unit information
Operating temperature min.	-20°C
Operating temperature max.	100°C
Recommended tightening torque for set screw	11.5 Nm
Mass	2.56 kg
