SNR USPE210CO Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 50mm Bore Insert with Narrow Steel Plate Cover - Open Version - Allow 2-3 Days
SNR USPE210CO Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 50mm Bore Insert with Narrow Steel Plate Cover - Open Version - Allow 2-3 Days
Regular price
$117.85
ex VAT
Regular price
Sale price
$117.85
ex VAT
In stock
Price Break
3+
$87.79
4+
$84.25
9+
$82.47
19+
$79.81
49+
$78.04
99+
$73.60
499+
$62.08
999+
$0.00
1999+
$0.00
2999+
$0.00
4999+
$0.00
Quantity
Couldn't load pickup availability
Share this product
Description
Description

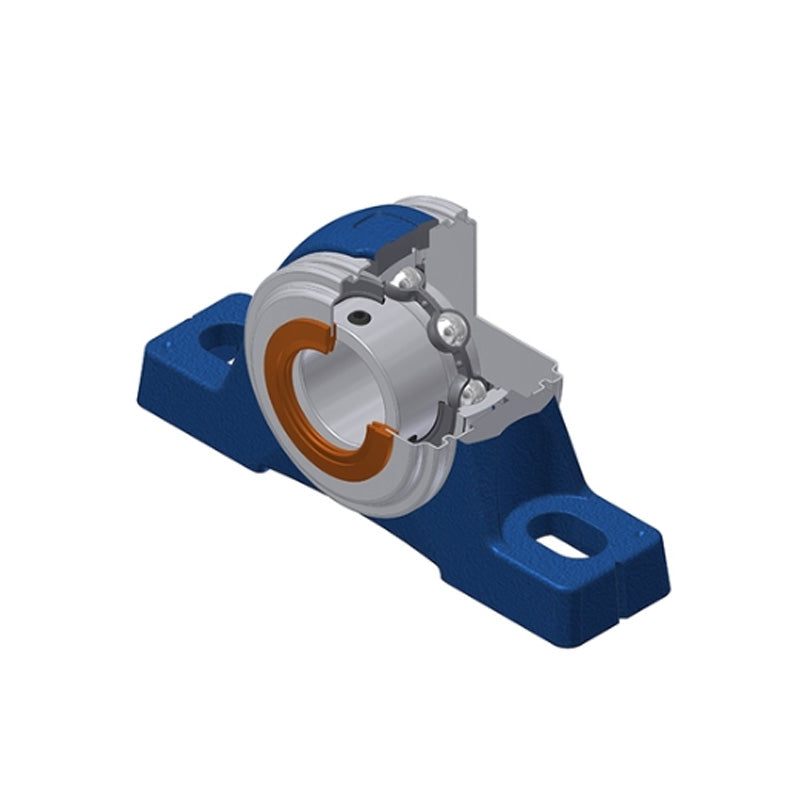

USPE200 Series 2 Bolt Cast Iron Pillow Block Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 50mm
- Style:
- USPE
- Bolt Hole Centres:
- 158mm
Technical
Technical

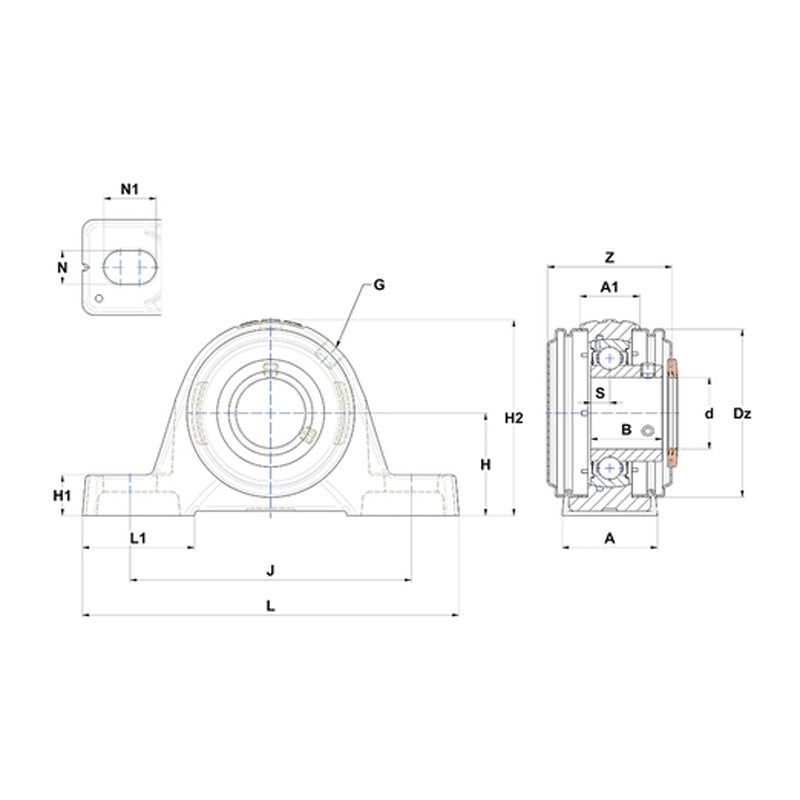

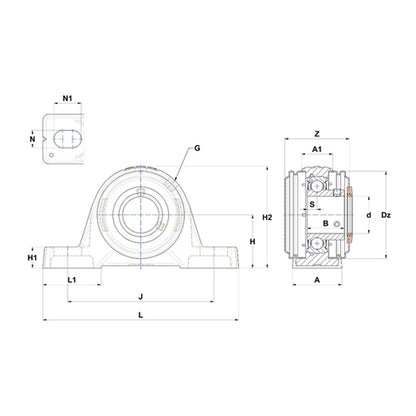

| --- | Dimensions |
|---|---|
| Shaft diameter | 50mm |
| A | 54mm |
| A1 | 34mm |
| B | 43.5mm |
| H | 57.2mm |
| H1 | 21.5mm |
| H2 | 115mm |
| J | 158mm |
| L | 200mm |
| L1 | 61mm |
| N | 18mm |
| N1 | 23mm |
| S | 10.9mm |
| Dz | 100mm |
| Z | 76.1mm |
| G | R1/8″ |
| --- | Load rating |
| Dynamic load C | 35.1 kN |
| Static load C0 | 23.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 11.5 Nm |
| Mass | 2.774 kg |
