SKU: USPE211CC-SNR

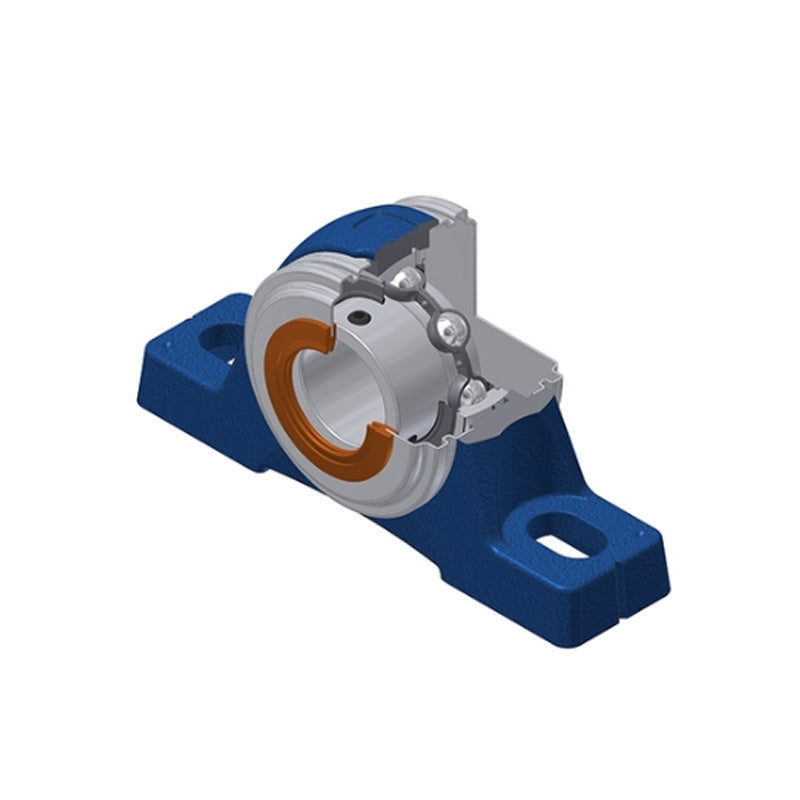

SNR USPE211CC Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 55mm Bore Insert with Narrow Steel Plate Cover - Closed Version - Allow 2-3 Days

SNR USPE211CC Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 55mm Bore Insert with Narrow Steel Plate Cover - Closed Version - Allow 2-3 Days
Regular price $235.67 ex VAT
Regular price Sale price $235.67 ex VAT
Sale Sold out

In stock

Price Break
3+ $175.57
4+ $168.47
9+ $164.93
19+ $159.61
49+ $156.06
99+ $147.19
499+ $124.14
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical

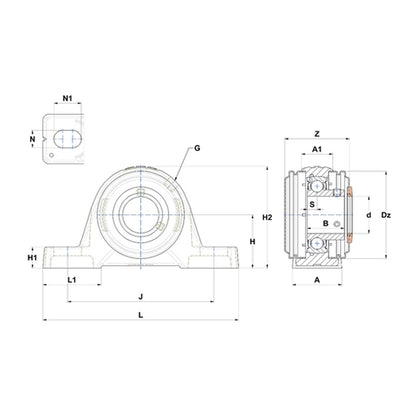

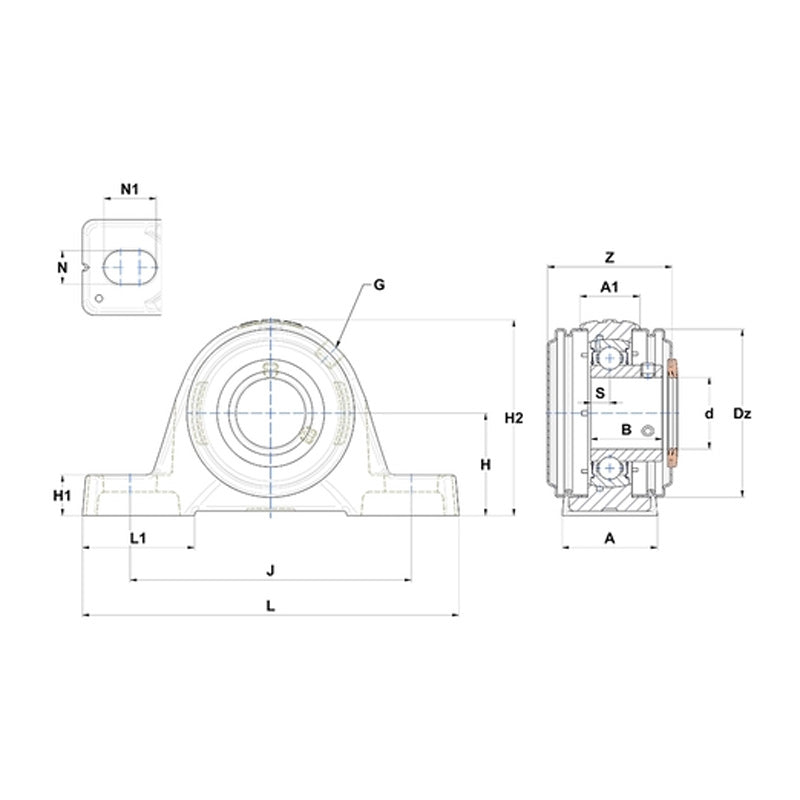

--- Dimensions
Shaft diameter 55mm
A 60mm
A1 35mm
B 45.3mm
H 63.5mm
H1 22.5mm
H2 124.5mm
J 176mm
L 222mm
L1 68mm
N 18mm
N1 30mm
S 11.8mm
Dz 110mm
Z 77.7mm
G R1/8″
--- Load rating
Dynamic load C 43.55 kN
Static load C0 29.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 22 Nm
Mass 3.632 kg
