• SNR USPF205 Round 3 Bolt Pressed Steel Bearing Housing with 25mm Insert
  • SNR
1 2

SKU: USPF205-SNR

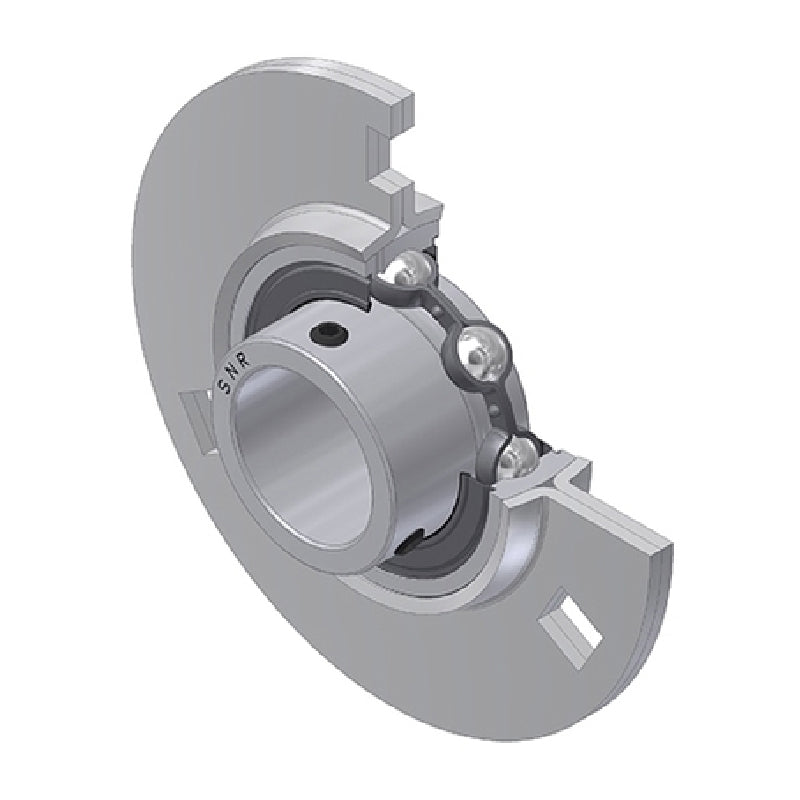

SNR USPF205 Round 3 Bolt Pressed Steel Bearing Housing with 25mm Insert

SNR USPF205 Round 3 Bolt Pressed Steel Bearing Housing with 25mm Insert
$19.64 ex VAT
$19.64 ex VAT
Sale Sold out

In stock

Price Break
3+ $13.15
4+ $12.42
9+ $12.27
19+ $12.12
49+ $11.97
99+ $11.82
499+ $11.08
999+ $10.94
1999+ $10.79
2999+ $10.64
4999+ $10.35

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Inside Diameter:
25mm
Style:
USPF
Pitch Circle Diameter:
76mm
Technical

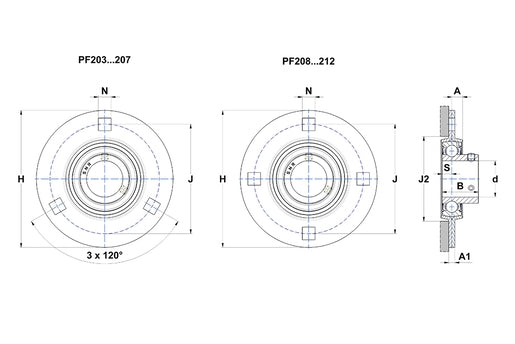

--- Dimensions
Shaft diameter 25mm
A 8.7mm
A1 4mm
A2 19.5mm
B 27mm
H 95.2mm
J 76mm
N 8.7mm
S 7.5mm
--- Load rating
Dynamic load C 14 kN
Static load C0 7.88 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 5.5 Nm
Mass 0.35 kg
