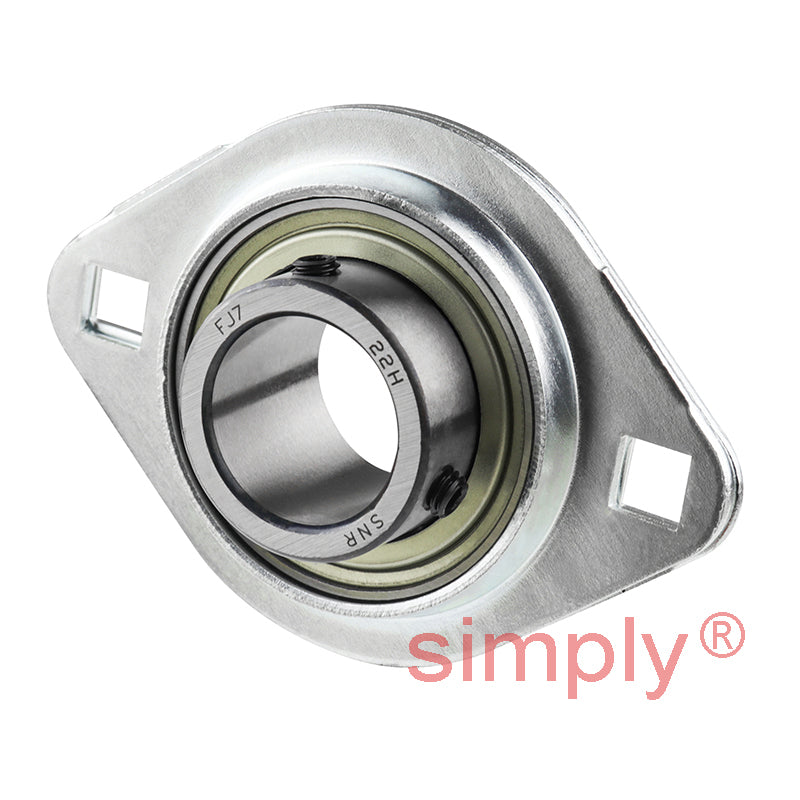

• SNR USPFL201 Oval 2 Bolt Pressed Steel Bearing Housing with 12mm Insert - Allow 2-3 Days
  • SNR
1 2

SKU: USPFL201-SNR

SNR USPFL201 Oval 2 Bolt Pressed Steel Bearing Housing with 12mm Insert - Allow 2-3 Days

SNR USPFL201 Oval 2 Bolt Pressed Steel Bearing Housing with 12mm Insert - Allow 2-3 Days
$16.37 ex VAT
$16.37 ex VAT
Sale Sold out

In stock

Price Break
3+ $10.97
4+ $10.35
9+ $10.23
19+ $10.10
49+ $9.98
99+ $9.86
499+ $9.24
999+ $9.12
1999+ $8.99
2999+ $8.87
4999+ $8.63

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Inside Diameter:
12mm
Style:
USPFL
Bolt Hole Centres:
4mm
Technical
--- Dimensions
Shaft diameter d 12mm
A 6.7mm
A1 4mm
A2 16mm
B 22mm
H 81mm
J 63.5mm
L 58.7mm
N 7.1mm
S 6mm
--- Load rating
Dynamic load C 9.55 kN
Static load C0 4.78 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 3.5 Nm
Mass 0.17 kg
