SKU: USPFL206-SNR

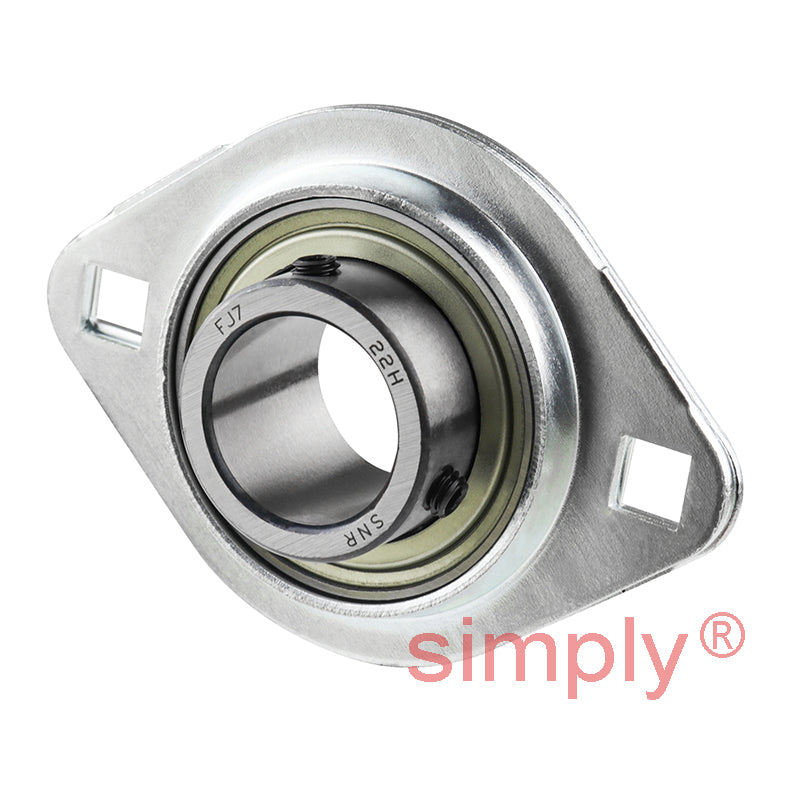

SNR USPFL206 Oval 2 Bolt Pressed Steel Bearing Housing with 30mm Insert - Allow 2-3 Days

SNR USPFL206 Oval 2 Bolt Pressed Steel Bearing Housing with 30mm Insert - Allow 2-3 Days
$26.19 ex VAT
$26.19 ex VAT
Sale Sold out

In stock

Price Break
3+ $17.54
4+ $16.55
9+ $16.36
19+ $16.16
49+ $15.96
99+ $15.77
499+ $14.78
999+ $14.58
1999+ $14.39
2999+ $14.19
4999+ $13.79

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Inside Diameter:
30mm
Style:
USPFL
Bolt Hole Centres:
5mm
Technical
--- Dimensions
Shaft diameter d 30mm
A 9mm
A1 5mm
A2 22mm
B 30mm
H 112.7mm
J 90.5mm
L 84mm
N 10.5mm
S 8mm
--- Load rating
Dynamic load C 19.5 kN
Static load C0 11.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 5.5 Nm
Mass 0.43 kg
